EMMA150200 Series
Manufacturer: CUI Inc.
Beta
⌘K

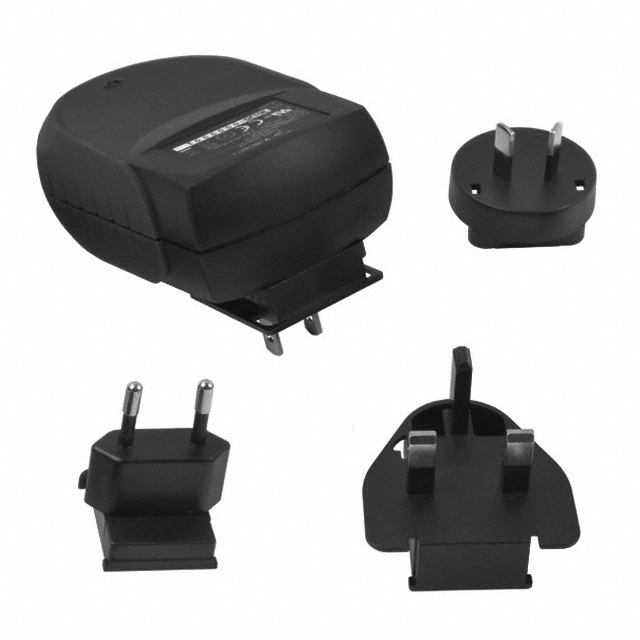

AC/DC WALL MOUNT ADAPTER 15V 30W
| Part | Efficiency | Input Connector | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Approval Agency | Voltage - Output | Standard Number | Voltage - Input [Max] | Voltage - Input [Min] | Input Type | Polarization | Cord Length | Cord Length | Output Connector | Output Connector [diameter] | Output Connector [x] | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | No Load Power Consumption | Current - Output (Max) [Max] | Region Utilized | Form | Weight [custom] | Weight [custom] | Output Connector [custom] | Output Connector [custom] | Output Connector [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | Level V | Multi-Blade | 4.28 in | 108.7 mm | 36.7 mm | 1.45 in | 2.44 " | 62 mm | EN FCC SIQ TUV UL | 15 V | 55011 Class B 60601-1 61000-3-2 61000-3-3 61000-6-1 61010-1 | 264 VAC | 90 VAC | Multi-Blade (Included) | Positive Center | 70.9 " | 1.8 m | Barrel Plug | 2.1 mm 5.5 mm | 9.5 mm | Medical | 40 °C | 0 °C | 30 Watts | 300 mW | 2 A | International | Wall Mount | 0.662 lb | 300.28 g | |||
CUI Inc. | Level V | Multi-Blade | 4.28 in | 108.7 mm | 36.7 mm | 1.45 in | 2.44 " | 62 mm | EN FCC SIQ TUV UL | 15 V | 55011 Class B 60601-1 61000-3-2 61000-3-3 61000-6-1 61010-1 | 264 VAC | 90 VAC | Multi-Blade (Included) | Positive Center | 70.9 " | 1.8 m | Barrel Plug R/A | Medical | 40 °C | 0 °C | 30 Watts | 300 mW | 2 A | International | Wall Mount | 0.662 lb | 300.28 g | 9.5 mm | 5.5 mm | 2.1 mm |
