DAPV15S565 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

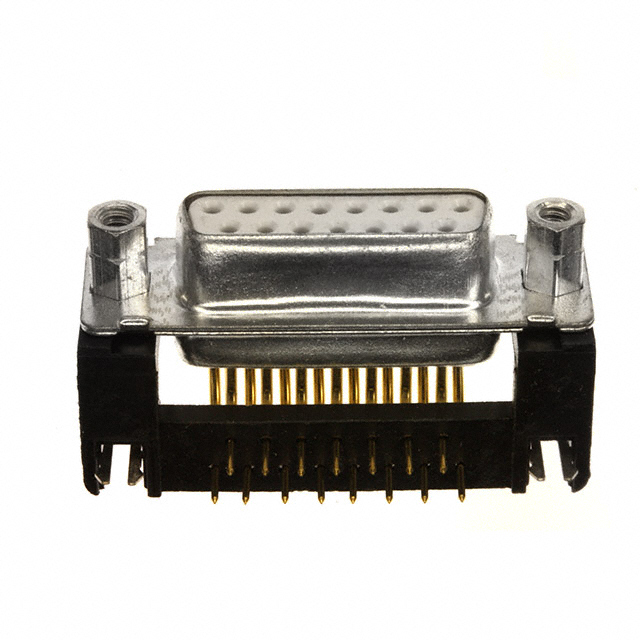

CONN D-SUB RCPT 15POS R/A SLDR
| Part | Contact Finish | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout | Number of Rows | Voltage Rating | Current Rating (Amps) | Flange Feature | Contact Type | Number of Positions | Material Flammability Rating | Mounting Type | Connector Style | Backset Spacing | Backset Spacing | Termination | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Gold GXT™ | Copper Alloy | 0.76 Ám | 30 Áin | 2 | 2 | 1000 VDC | 7.5 A | Female Screwlock (4-40) Mating Side | Signal | 15 | UL94 V-0 | Through Hole Right Angle | D-Sub | 0.406 in | 10.3 mm | Solder | Thermoplastic | -55 °C | 125 °C | Receptacle Female Sockets |
