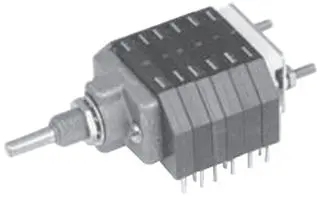

C3P0112 Series
Manufacturer: Electroswitch
Beta
⌘K
ROTARY SWITCHES 02-12POS/1P/1 DECK
| Part | Panel Cutout Dimensions [diameter] | Contact Timing | Actuator Type | Actuator Length [x] | Voltage Rating - DC | Number of Decks [custom] | Termination Style | Contact Finish | Number of Positions [Max] | Number of Positions [Min] | Number of Poles per Deck | Contact Material | Current Rating (Amps) | Mounting Type | Circuit per Deck | Index Stops | Angle of Throw | Depth Behind Panel [z] | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Electroswitch | 6.76 mm | Non-Shorting (BBM) | Flatted (3.17mm Dia) | 9.52 mm | 28 V | 1 | PC Pin | Silver | 12 | 2 | 1 | Brass | 100 mA 250 mA | Panel Mount Right Angle Through Hole | SP12T | Adjustable | 30 ° | 22.38 mm | 125 V |
