PT02E Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT FMALE 32P SOLDER CUP

Part	Insert Material	Contact Material	Backshell Material, Plating	Applications	Qualification	Termination	Shell Finish	Mounting Feature	Mounting Type	Primary Material	Shell Material	Ingress Protection	Shielding	Color	Fastening Type	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Orientation	Connector Type	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Contact Finish - Mating	Shell Size - Insert Length	Shell Size - Insert Width	Backshell Material	Plating

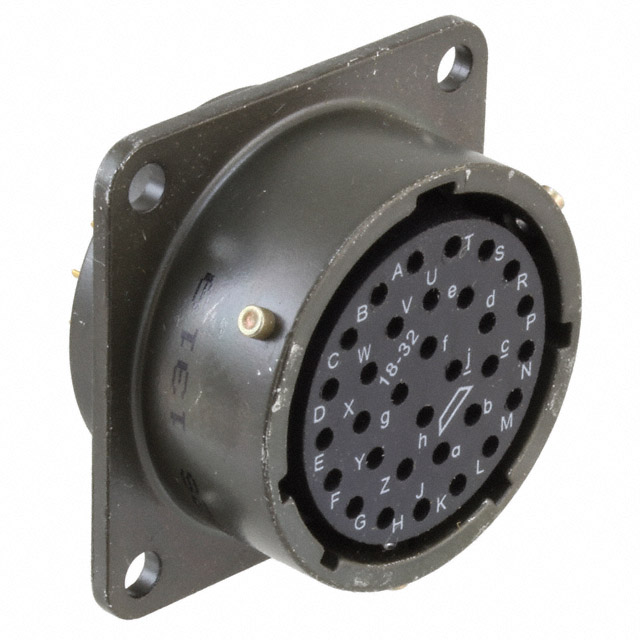

Amphenol Aerospace Operations PT02E-18-32S	Neoprene	Copper Alloy	Aluminum Olive Drab Cadmium	Aerospace Industrial Instrumentation Mass Transit Military	MIL-DTL-26482 Series I	Solder Cup	Cadmium Olive Drab Chromate	Flange	Panel Mount	Metal	Aluminum	Environment Sealed	Unshielded	Olive Drab	Bayonet Lock	32	125 °C	-55 °C	N (Normal)	Female Sockets Receptacle	32	18	Gold
Amphenol Aerospace Operations PT02E12-8S-025	Neoprene	Copper Alloy		Aerospace Communication Systems Industrial Instrumentation Mass Transit	MIL-DTL-26482 Series I	Solder Cup	Black Zinc Cobalt	Flange	Panel Mount	Metal	Aluminum	Environment Resistant	Unshielded	Black	Bayonet Lock	8	125 °C	-55 °C	N (Normal)	Female Sockets Receptacle			Gold	12 mm	8 mm	Aluminum	Black Zinc Cobalt
Amphenol Aerospace Operations PT02E-14-5P	Neoprene	Copper Alloy	Aluminum Olive Drab Cadmium	Aerospace Industrial Instrumentation Mass Transit Military	MIL-DTL-26482 Series I	Solder Cup	Cadmium Olive Drab Chromate	Flange	Panel Mount	Metal	Aluminum	Environment Sealed	Unshielded	Olive Drab	Bayonet Lock	5	125 °C	-55 °C	N (Normal)	Male Pins Receptacle			Gold	14 mm	5 mm
Amphenol Aerospace Operations PT02E12-3P(025)	Neoprene	Copper Alloy		Aerospace Industrial Instrumentation Mass Transit Military	MIL-DTL-26482 Series I	Solder Cup	Black Zinc Cobalt	Flange	Panel Mount	Metal	Aluminum	Environment Sealed	Unshielded	Black	Bayonet Lock	3	125 °C	-55 °C	N (Normal)	Male Pins Receptacle			Gold	12 mm	3 mm	Aluminum	Black Zinc Cobalt
Amphenol Aerospace Operations PT02E24-61PW	Neoprene	Copper Alloy	Aluminum Olive Drab Cadmium	Aerospace Communication Systems Industrial Instrumentation Mass Transit	MIL-DTL-26482 Series I	Solder Cup	Cadmium Olive Drab Chromate	Flange	Panel Mount	Metal	Aluminum	Environment Resistant	Unshielded	Olive Drab	Bayonet Lock	61	125 °C	-55 °C	W	Male Pins Receptacle	61	24	Gold

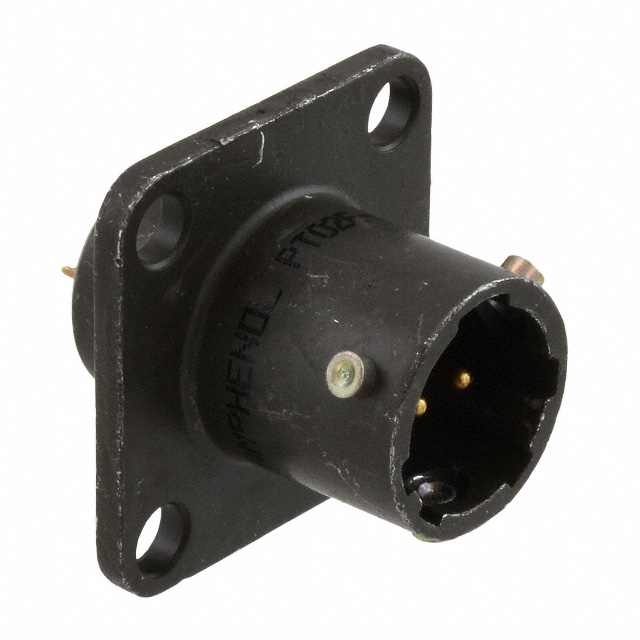

Amphenol Aerospace Operations PT02E-8-2P	Neoprene	Copper Alloy	Aluminum Olive Drab Cadmium	Aerospace Industrial Instrumentation Mass Transit Military	MIL-DTL-26482 Series I	Solder Cup	Cadmium Olive Drab Chromate	Flange	Panel Mount	Metal	Aluminum	Environment Sealed	Unshielded	Olive Drab	Bayonet Lock	2	125 °C	-55 °C	N (Normal)	Male Pins Receptacle			Gold	8 mm	2 mm
Amphenol Aerospace Operations PT02E-12-10P(025)	Neoprene	Copper Alloy		Aerospace Industrial Instrumentation Mass Transit Military	MIL-DTL-26482 Series I	Solder Cup	Black Zinc Cobalt	Flange	Panel Mount	Metal	Aluminum	Environment Sealed	Unshielded	Black	Bayonet Lock	10	125 °C	-55 °C	N (Normal)	Male Pins Receptacle			Gold	12 mm	10 mm	Aluminum	Black Zinc Cobalt
Amphenol Aerospace Operations PT02E-14-19S	Neoprene	Copper Alloy	Aluminum Olive Drab Cadmium	Aerospace Industrial Instrumentation Mass Transit Military	MIL-DTL-26482 Series I	Solder Cup	Cadmium Olive Drab Chromate	Flange	Panel Mount	Metal	Aluminum	Environment Sealed	Unshielded	Olive Drab	Bayonet Lock	19	125 °C	-55 °C	N (Normal)	Female Sockets Receptacle	19	14 S	Gold

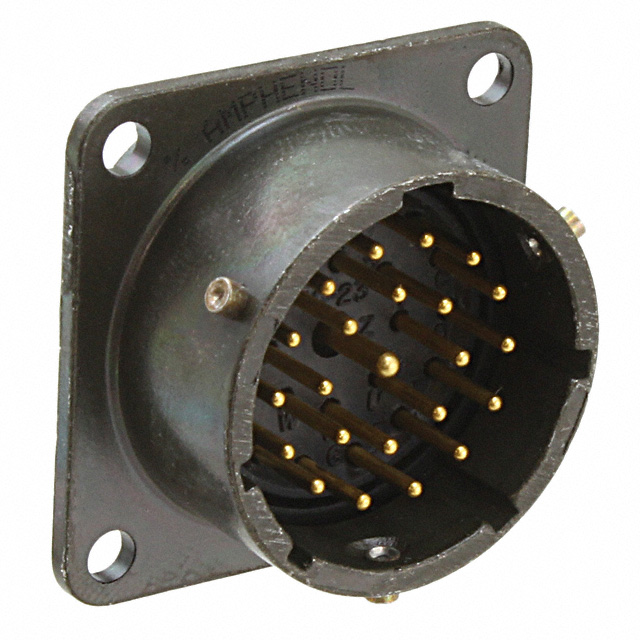

Amphenol Aerospace Operations PT02E-16-23P	Neoprene	Copper Alloy	Aluminum Olive Drab Cadmium	Aerospace Industrial Instrumentation Mass Transit Military	MIL-DTL-26482 Series I	Solder Cup	Cadmium Olive Drab Chromate	Flange	Panel Mount	Metal	Aluminum	Environment Sealed	Unshielded	Olive Drab	Bayonet Lock	23	125 °C	-55 °C	N (Normal)	Male Pins Receptacle	23	16 S	Gold
Amphenol Aerospace Operations PT02E-20-16S	Neoprene	Copper Alloy	Aluminum Olive Drab Cadmium	Aerospace Industrial Instrumentation Mass Transit Military	MIL-DTL-26482 Series I	Solder Cup	Cadmium Olive Drab Chromate	Flange	Panel Mount	Metal	Aluminum	Environment Sealed	Unshielded	Olive Drab	Bayonet Lock	16	125 °C	-55 °C	N (Normal)	Female Sockets Receptacle			Gold	20 mm	16 mm
