CT6M Series

Manufacturer: Autonics

Catalog

COUNTER TIMER 24VAC/24-48VDC

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Voltage - Supply	Operating Mode	Time Format	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination Style	Ingress Protection	Type	Number of Characters Per Row	Display Type	Input Type	Count Rate	Reset	Mounting Type	Display Characters - Height	Display Characters - Height	Output Type
Autonics CT6M-2P2	48 V	24 V	24 VAC	Down Up	Multiple	68 mm	68 mm	Screw Terminal	IP65 - Dust Tight Water Resistant	Batch Preset Tachometer Timer Totalizer	6	LED - Green Red Characters	No Voltage Voltage	Multiple	External Front Panel	Panel Mount	9 mm 13 mm	0.354 " 0.512 in	Relay (2) Solid State (2)

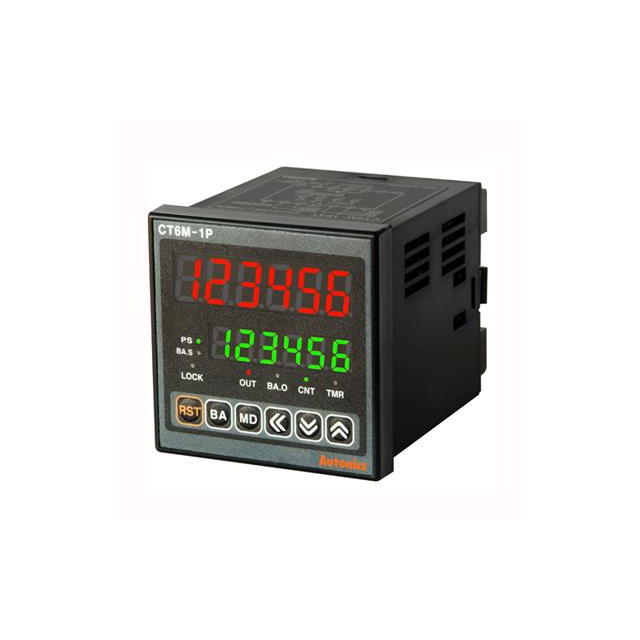

Autonics CT6M-2P4T	240 VAC	100 VAC		Down Up	Multiple	68 mm	68 mm	Screw Terminal	IP65 - Dust Tight Water Resistant	Batch Preset Tachometer Timer Totalizer	6	LED - Green Red Characters	No Voltage Voltage	Multiple	External Front Panel	Panel Mount	9 mm 13 mm	0.354 " 0.512 in	Relay (2) Solid State (2)
Autonics CT6M-1P4	240 VAC	100 VAC		Down Up	Multiple	68 mm	68 mm	Screw Terminal	IP65 - Dust Tight Water Resistant	Batch Preset Tachometer Timer Totalizer	6	LED - Green Red Characters	No Voltage Voltage	Multiple	External Front Panel	Panel Mount	9 mm 13 mm	0.354 " 0.512 in	Relay Solid State
Autonics CT6M-I4	240 VAC	100 VAC		Down Up	Multiple	68 mm	68 mm	Screw Terminal	IP65 - Dust Tight Water Resistant	Batch Preset Tachometer Timer Totalizer	6	LED - Green Red Characters	No Voltage Voltage	Multiple	External Front Panel	Panel Mount	9 mm 13 mm	0.354 " 0.512 in
Autonics CT6M-1P4T	240 VAC	100 VAC		Down Up	Multiple	68 mm	68 mm	Screw Terminal	IP65 - Dust Tight Water Resistant	Batch Preset Tachometer Timer Totalizer	6	LED - Green Red Characters	No Voltage Voltage	Multiple	External Front Panel	Panel Mount	9 mm 13 mm	0.354 " 0.512 in	Relay Solid State

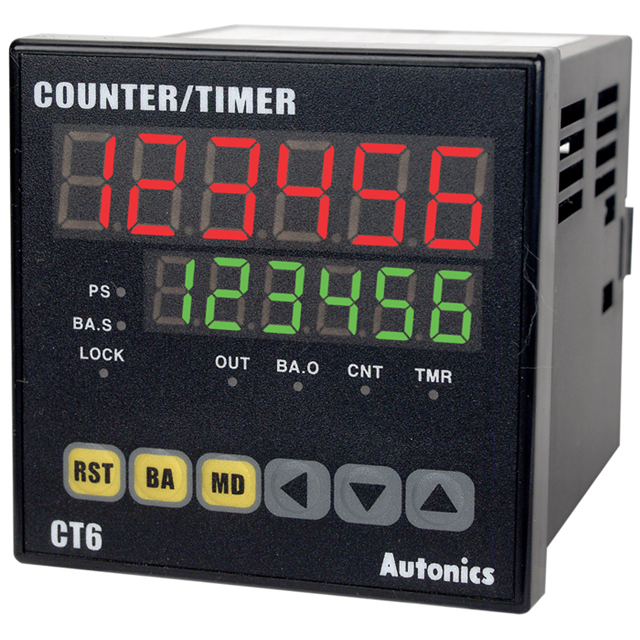

Autonics CT6M-2P4	240 VAC	100 VAC		Down Up	Multiple	68 mm	68 mm	Screw Terminal	IP65 - Dust Tight Water Resistant	Batch Preset Tachometer Timer Totalizer	6	LED - Green Red Characters	No Voltage Voltage	Multiple	External Front Panel	Panel Mount	9 mm 13 mm	0.354 " 0.512 in	Relay (2) Solid State (2)
