MDBE09 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K
CONN D-SUB RCPT 9POS PNL MNT
| Part | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Color | Contact Material | Dielectric Material | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Style | Mounting Type | Shell Material, Finish | Number of Positions | Number of Rows [custom] | Current Rating (Amps) | Contact Finish | Flange Feature | Connector Type | Contact Type | Ingress Protection | Features | Termination | Backset Spacing | Backset Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

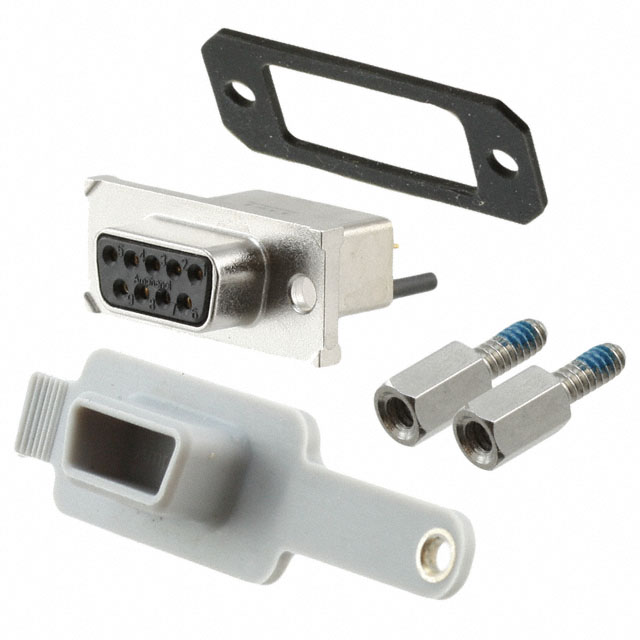

 Amphenol ICC (Commercial Products) | 125 VDC | 85 °C | -40 C | Black | Copper Alloy | Thermoplastic | UL94 V-0 | 30 Áin | 0.76 Ám | 1 | DE E | D-Sub | Panel Mount | Nickel Plated Zinc | 9 | 2 | 5 A | Gold | Cable Side (4-40) | Receptacle Female Sockets | Signal | IP67 - Dust Tight Waterproof | Board Lock | |||

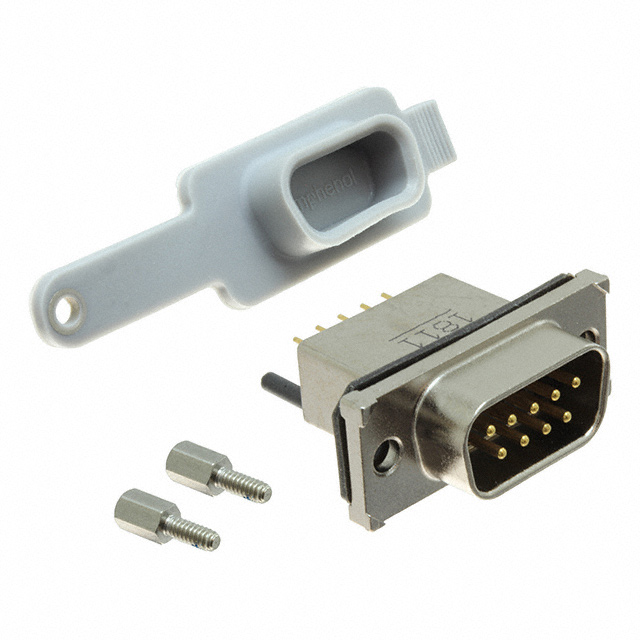

 Amphenol ICC (Commercial Products) | 125 VDC | 105 ░C | -40 C | Black | Copper Alloy | Thermoplastic | UL94 V-0 | 30 Áin | 0.76 Ám | 1 | DE E | D-Sub | Panel Mount Through Hole | Nickel Plated Zinc | 9 | 2 | 5 A | Gold | Housing/Shell (Unthreaded) | Plug Male Pins | Signal | IP67 - Dust Tight Waterproof | Board Guide Dust Cap | Solder | ||

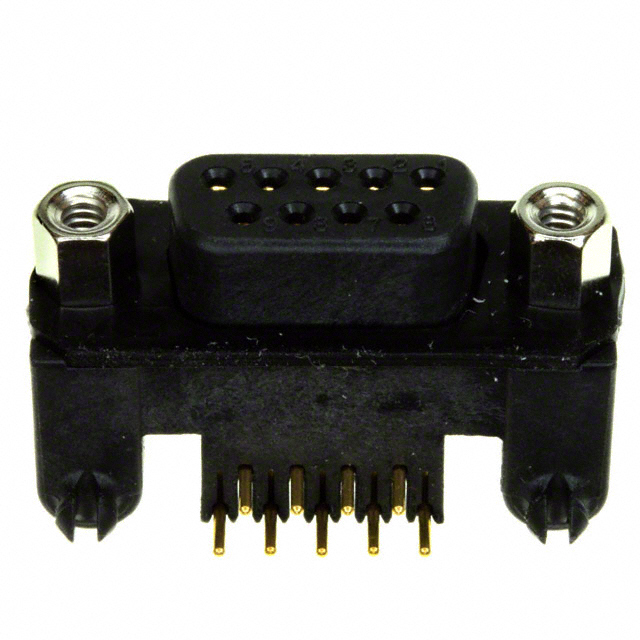

 Amphenol ICC (Commercial Products) | 125 VDC | 105 ░C | -40 C | Black | Copper Alloy | Thermoplastic | UL94 V-0 | 30 Áin | 0.76 Ám | 1 | DE E | D-Sub | Panel Mount Right Angle Through Hole | Nickel Plated Zinc | 9 | 2 | 5 A | Gold | 4-40 Mating Side Female Screwlock | Receptacle Female Sockets | Signal | IP67 - Dust Tight Waterproof | Board Lock | Solder | 8.08 mm | 0.318 " |
 Amphenol ICC (Commercial Products) | 125 VDC | 105 ░C | -40 C | Black | Copper Alloy | Thermoplastic | UL94 V-0 | 50 µin | 1.27 µm | 1 | DE E | D-Sub | Panel Mount Through Hole | Nickel Plated Zinc | 9 | 2 | 5 A | Gold | Housing/Shell (Unthreaded) | Receptacle Female Sockets | Signal | IP67 - Dust Tight Waterproof | Board Guide Dust Cap | Solder |
