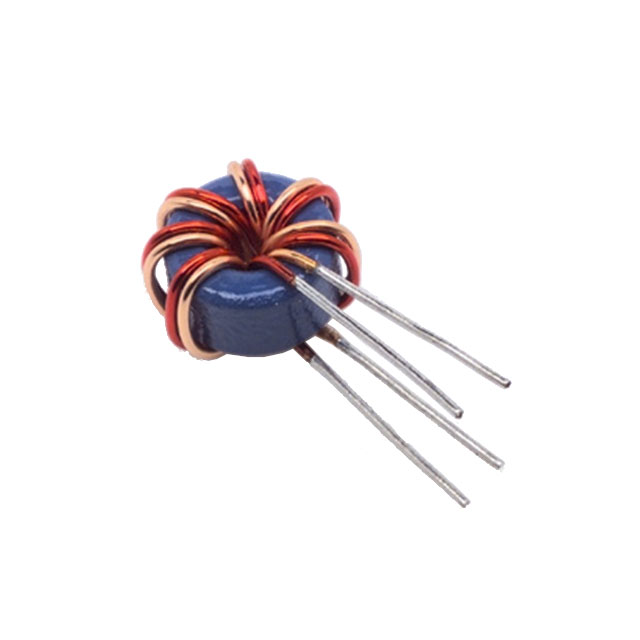

SHO Series
Manufacturer: KEMET
Beta
⌘K
COMMON MODE CHOKES / FILTERS 50V 99UH 0.8A DCR=120MOHMS
| Part | Inductance @ Frequency | DC Resistance (DCR) (Max) [Max] | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Height (Max) [z] | Height (Max) [z] | Package / Case | Voltage Rating - DC | Size / Dimension [diameter] | Size / Dimension [diameter] | Current Rating (Max) [Max] | Filter Type | Number of Lines |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 99 µH | 0.12 Ohm | Through Hole | -25 °C | 80 °C | 7.5 mm | 0.295 in | Vertical No Base 4 PC Pin | 50 VDC | 7.5 mm | 0.295 in | 800 mA | Power Line | 2 |
