ABC401 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K

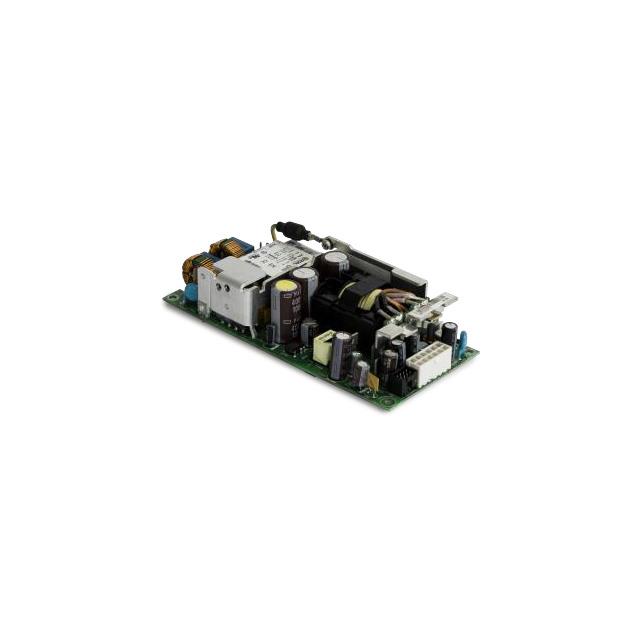

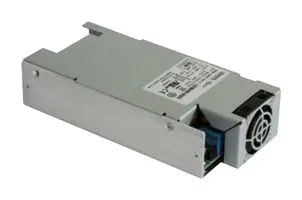

POWER SUPPLY, AC-DC, 24V, 16.7A ROHS COMPLIANT: YES
| Part | Minimum Load Required | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Standard Number | Number of Outputs | Power (Watts) | Voltage - Output 1 | Features | Voltage - Input [Min] | Voltage - Input [Max] | Approval Agency | Applications | Efficiency | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Current - Output 1 | Type | Voltage - Isolation | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | Chassis Mount | 50 °C | -20 °C | 60950-1 | 1 | 401 W | 24 V | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | 90 VAC 170 VDC | 264 VAC 270 VDC | CE cURus DEMKO | ITE (Commercial) | 94 % | 2.99 in | 76 mm | 1.48 " | 37.7 mm | 164.2 mm | 6.46 " | 16.7 A | Open Frame | 4000 V | |||
 Bel Fuse Inc. | Chassis Mount | 50 °C | -20 °C | 60950-1 | 1 | 400 W | 12 V | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | 90 VAC 170 VDC | 264 VAC 270 VDC | CE cURus DEMKO | ITE (Commercial) | 94 % | 2.99 in | 76 mm | 1.48 " | 37.7 mm | 164.2 mm | 6.46 " | 33.3 A | Open Frame | 4000 V | |||
 Bel Fuse Inc. | Chassis Mount | 50 °C | -20 °C | 60950-1 | 1 | 400 W | 12 V | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | 90 VAC 170 VDC | 264 VAC 270 VDC | CE cURus DEMKO | ITE (Commercial) | 94 % | 3.32 " | 1.61 " | 180.5 mm | 7.11 in | 33.3 A | Enclosed | 4000 V | 41 mm | 84.4 mm |
