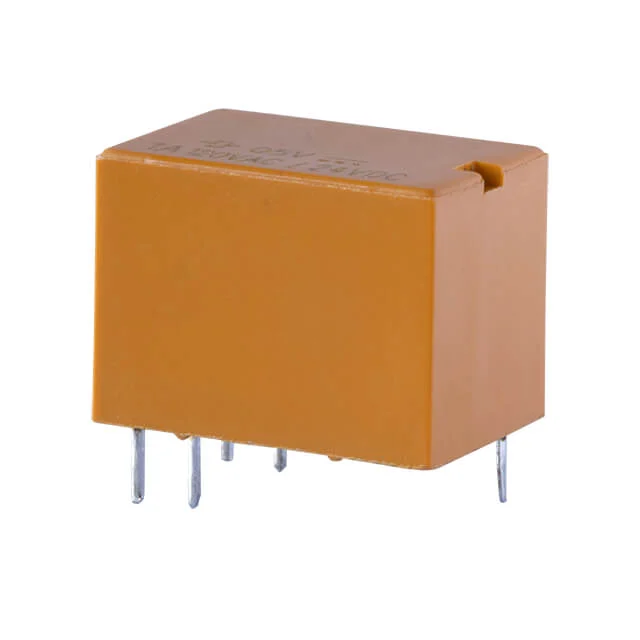

SR7-9V Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K
RELAY GENERAL PURPOSE SPDT 1A 9V
| Part | Switching Voltage | Operate Time | Contact Form | Release Time | Load - Max Switching | Termination Style | Must Release Voltage | Must Operate Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Relay Type | Contact Rating (Current) | Coil Type | Contact Material | Coil Voltage | Mounting Type | Coil Current | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Same Sky (Formerly CUI Devices) | 24 VDC 120 VAC | 5 ms | SPDT (1 Form C) | 5 ms | 24 W 120 VA | PC Pin | 0.9 VDC | 6.75 VDC | -25 °C | 70 °C | General Purpose | 1 A | Non Latching | Gold (Au) Silver (Ag) | 9 VDC | Through Hole | 22.2 mA | |
Same Sky (Formerly CUI Devices) | 24 VDC 120 VAC | 5 ms | SPDT (1 Form C) | 5 ms | 24 W 120 VA | PC Pin | 0.9 VDC | 6.75 VDC | -25 °C | 70 °C | General Purpose | 1 A | Non Latching | Gold (Au) Silver (Ag) | 9 VDC | Through Hole | 22.2 mA | 405 Ohms |
