RKZE Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 2W 12VIN 15VOUT 133MA SINGLE SIP7

...

Part	Voltage - Input (Max) [Max]	Voltage - Output 1	Current - Output (Max) [Max]	Voltage - Isolation	Mounting Type	Efficiency	Type	Number of Outputs	Applications	Features	Power (Watts)	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Current - Output (Max)	Voltage - Output 2	Current - Output (Max)
Recom Power RKZE-1215S/HP	13.2 V	15 V	133 mA	4000 V	Through Hole	86 %	Isolated Module	1	ITE (Commercial)	SCP	2 W	10.8 V	80 °C	-40 C	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	7-SIP Module 4 Leads
Recom Power RKZE-1215D	13.2 V	15 V		3000 V	Through Hole	86 %	Isolated Module	2	ITE (Commercial)		2 W	10.8 V	80 °C	-40 C	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	7-SIP Module 5 Leads	66 mA	-15 V
Recom Power RKZE-0512S/HP	5.5 V	12 V	167 mA	4000 V	Through Hole	88 %	Isolated Module	1	ITE (Commercial)	SCP	2 W	4.5 V	80 °C	-40 C	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	7-SIP Module 4 Leads
Recom Power RKZE-2405D/H	26.4 V	5 V		4000 V	Through Hole	85 %	Isolated Module	2	ITE (Commercial)		2 W	21.6 V	80 °C	-40 C	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	7-SIP Module 5 Leads		-5 V

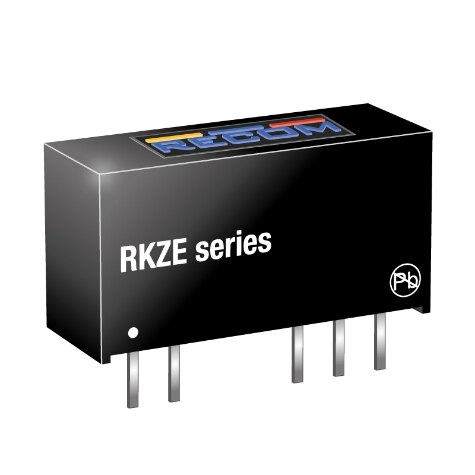

Recom Power RKZE-1515D/HP	16.5 V	15 V		4000 V	Through Hole	86 %	Isolated Module	2	ITE (Commercial)	SCP	2 W	13.5 V	80 °C	-40 C	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	7-SIP Module 5 Leads	66 mA	-15 V
Recom Power RKZE-0515D/HP	5.5 V	15 V		4000 V	Through Hole	86 %	Isolated Module	2	ITE (Commercial)	SCP	2 W	4.5 V	80 °C	-40 C	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	7-SIP Module 5 Leads	66 mA	-15 V
Recom Power RKZE-0515D/P	5.5 V	15 V		3000 V	Through Hole	86 %	Isolated Module	2	ITE (Commercial)	SCP	2 W	4.5 V	80 °C	-40 C	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	7-SIP Module 5 Leads	66 mA	-15 V
Recom Power RKZE-1512D/HP	16.5 V	12 V		4000 V	Through Hole	85 %	Isolated Module	2	ITE (Commercial)	SCP	2 W	13.5 V	80 °C	-40 C	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	7-SIP Module 5 Leads	84 mA	-12 V	84 mA
Recom Power RKZE-1205S/P	13.2 V	5 V	400 mA	3000 V	Through Hole	83 %	Isolated Module	1	ITE (Commercial)	SCP	2 W	10.8 V	80 °C	-40 C	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	7-SIP Module 4 Leads
Recom Power RKZE-0505D/P	5.5 V	5 V		3000 V	Through Hole	85 %	Isolated Module	2	ITE (Commercial)	SCP	2 W	4.5 V	80 °C	-40 C	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	7-SIP Module 5 Leads		-5 V
