MEAS SR Series

Catalog

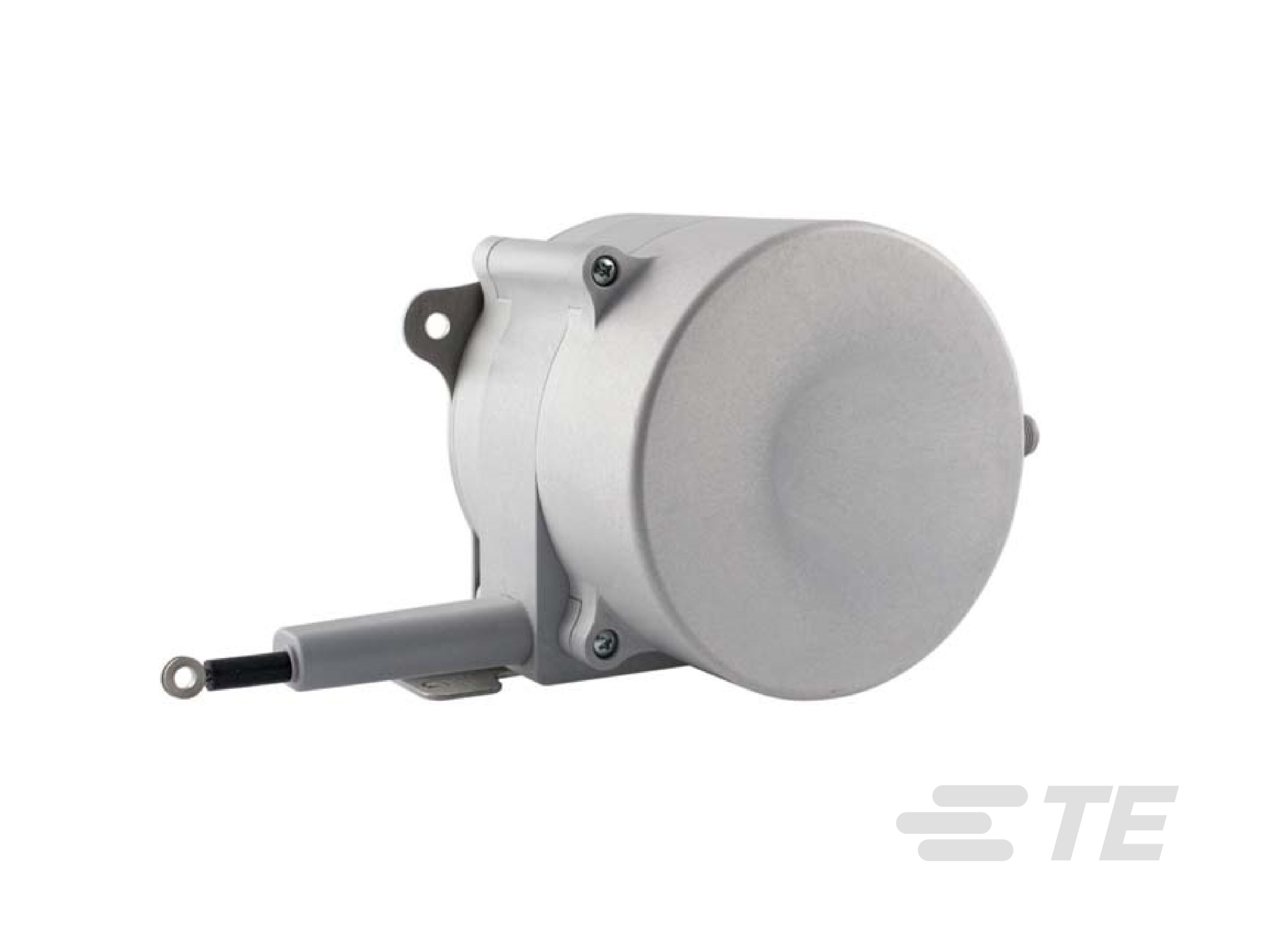

STRING POT, 125 INCH RANGE

Part	Resistance	Actuator Type	Linear Range [Min]	Linear Range [Min]	Linear Range [Max]	Linear Range [Max]	Package / Case	Voltage - Supply	Linearity	Output	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Technology	Termination Style	For Measuring	Voltage - Supply [Max]	Voltage - Supply [Min]	Output [Min]	Output [Max]	Linear Range [Max] [x]	Linear Range [Max] [x]	Linear Range [Min] [x]	Linear Range [Min] [x]
TE Connectivity AMP Connectors SR1A-125	10000 Ohms	String Potentiometer	0 "	0 mm	3175 mm	125 in	Box with Connector	30 VAC/DC	0.5 %	Resistive	85 °C	-40 C	Chassis Mount	Resistive	Cable	Linear Position
TE Connectivity AMP Connectors SR1E-125		String Potentiometer	0 "	0 mm	3175 mm	125 in	Box with Connector		0.1 %	Push-Pull	85 °C	-20 ░C	Chassis Mount		Cable	Linear Position	30 VDC	5 V
TE Connectivity AMP Connectors SR1V-175
TE Connectivity AMP Connectors SR1M-175		String Potentiometer					Box with Connector		0.5 %		85 °C	-40 C	Panel Mount		Connector	Linear Position	30 VDC	10 VDC	4 mA	20 mA	175 "	4445 mm	0.98 "	25 mm
TE Connectivity AMP Connectors SR1A-62
TE Connectivity AMP Connectors SR1V-125
TE Connectivity AMP Connectors SR1A-175
TE Connectivity AMP Connectors SR1M-125		String Potentiometer	0 "	0 mm	3175 mm	125 in	Box with Connector		0.5 %		85 °C	-40 C	Chassis Mount		Cable	Linear Position	30 VDC	10 VDC	4 mA	20 mA
