PPTC332 Series

Catalog

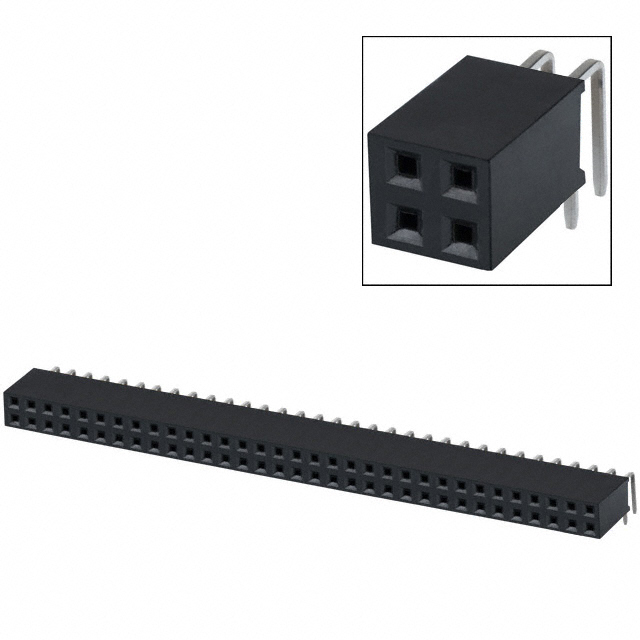

CONN HDR 66POS 0.1 TIN PCB R/A

Part	Contact Material	Contact Shape	Insulation Material	Number of Positions Loaded	Number of Positions	Insulation Color	Fastening Type	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Contact Type	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Mounting Type	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Voltage Rating	Termination	Contact Finish - Post	Connector Type
Sullins Connector Solutions PPTC332LJBN-RC	Phosphor Bronze	Square	Polyester	All	66	Black	Push-Pull	UL94 V-0	0.2 in	5.08 mm	Female Socket	0.124 in	3.15 mm	0.1 in	2.54 mm	-40 C	105 ░C	3 A	Right Angle Through Hole	2	0.1 "	2.54 mm	250 V	Solder	Tin	Header
