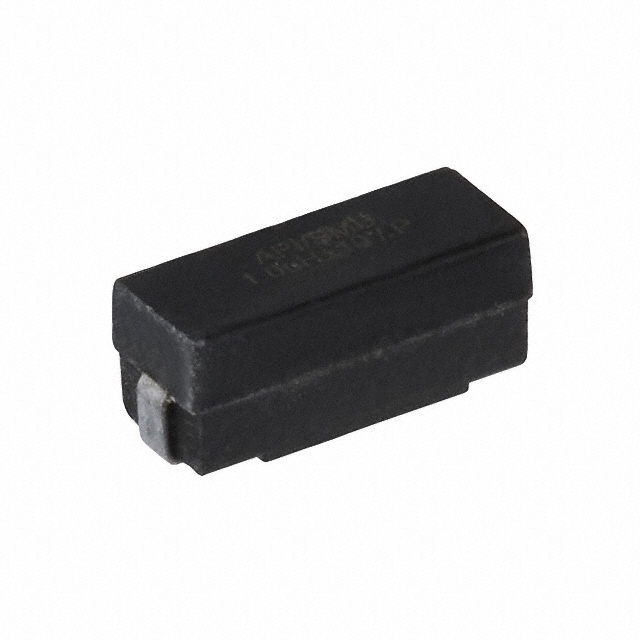

P1330/R Series
Manufacturer: Delevan
Beta
⌘K
POWER INDUCTORS - SMD 330UH 5% 4.8OHM MOLDED SMT INDUCTOR
| Part | Inductance Frequency - Test | Tolerance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Current Rating (Amps) | Mounting Type | Current - Saturation (Isat) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | DC Resistance (DCR) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Inductance | Material - Core | Package / Case | Shielding | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delevan | 1 kHz | 5 % | 0.125 in | 8.26 mm | 3.18 mm | 0.325 in | 179 mA | Surface Mount | 57 mA | 3.68 mm | 0.145 in | 4.8 Ohm | -55 C | 125 °C | 330 µH | Ferrite | Nonstandard | Unshielded | ||
 Delevan | 1 kHz | 5 % | 0.125 in | 8.26 mm | 3.18 mm | 0.325 in | 1.46 A | Surface Mount | 840 mA | 3.68 mm | 0.145 in | 108 mOhm | -55 C | 125 °C | 3.3 µH | Ferrite | Nonstandard | Unshielded | ||
Delevan | 1 kHz | 10 % | 171 mA | Surface Mount | 48 mA | 3.68 mm | 0.145 in | 5.64 Ohm | -55 C | 125 °C | 390 µH | Ferrite | Nonstandard | Unshielded | 0.313 in 7.94 mm | 0.115 in 2.92 mm | ||||
Delevan | 1 kHz | 5 % | 0.125 in | 8.26 mm | 3.18 mm | 0.325 in | 161 mA | Surface Mount | 41 mA | 3.68 mm | 0.145 in | 6 Ohm | -55 C | 125 °C | 470 µH | Ferrite | Nonstandard | Unshielded | ||
Delevan | 1 kHz | 10 % | 568 mA | Surface Mount | 270 mA | 3.68 mm | 0.145 in | 538 mOhm | -55 C | 125 °C | 33 µH | Ferrite | Nonstandard | Unshielded | 0.313 in 7.94 mm | 0.115 in 2.92 mm | ||||
Delevan | 1 kHz | 5 % | 0.125 in | 8.26 mm | 3.18 mm | 0.325 in | 138 mA | Surface Mount | 35 mA | 3.68 mm | 0.145 in | 6.96 Ohm | -55 C | 125 °C | 560 µH | Ferrite | Nonstandard | Unshielded | ||
Delevan | 1 kHz | 5 % | 0.125 in | 8.26 mm | 3.18 mm | 0.325 in | 912 mA | Surface Mount | 516 mA | 3.68 mm | 0.145 in | 252 mOhm | -55 C | 125 °C | 12 µH | Ferrite | Nonstandard | Unshielded | ||
Delevan | 1 kHz | 10 % | 1.95 A | Surface Mount | 1.18 A | 3.68 mm | 0.145 in | 48 mOhm | -55 C | 125 °C | 1.8 µH | Ferrite | Nonstandard | Unshielded | 0.313 in 7.94 mm | 0.115 in 2.92 mm | ||||
Delevan | 1 kHz | 10 % | 327 mA | Surface Mount | 111 mA | 3.68 mm | 0.145 in | 1.8 Ohm | -55 C | 125 °C | Ferrite | Nonstandard | Unshielded | 0.313 in 7.94 mm | 0.115 in 2.92 mm | |||||
Delevan | 1 kHz | 3 % | 0.125 in | 8.26 mm | 3.18 mm | 0.325 in | 2.03 A | Surface Mount | 1.291 A | 3.68 mm | 0.145 in | 43 mOhm | -55 C | 125 °C | 1.5 µH | Ferrite | Nonstandard | Unshielded |
