16282-2P Series
Manufacturer: Conxall/Switchcraft
Beta
⌘K

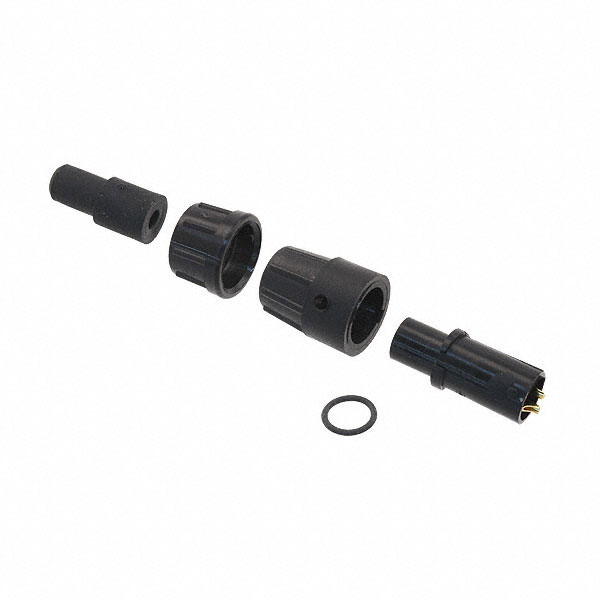

CONN PLUG MALE 2P GOLD SLDR CUP
| Part | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Voltage Rating | Orientation | Contact Material | Primary Material | Mounting Type | Number of Positions | Fastening Type | Contact Finish - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Backshell Material, Plating | Current Rating (Amps) | Features | Ingress Protection | Material Flammability Rating | Applications | Color | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Conxall/Switchcraft | 4.57 mm | 0.18 in | 0.2 in | 5.08 mm | 600 VAC | Keyed | Copper Alloy | Plastic | Free Hanging (In-Line) | 2 | Bayonet Lock | Gold | 85 °C | -40 °C | Male Pins Plug | Thermoplastic | 7.5 A | Backshell | IP67 - Dust Tight Waterproof | UL94 HB | Data Industrial Instrumentation Medical | Black | Unshielded |
