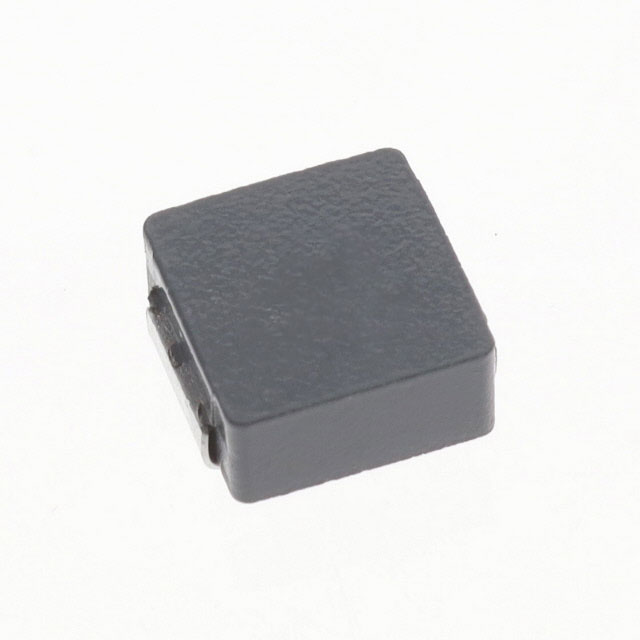

SRP8540A Series
Manufacturer: Bourns Inc.
Beta
⌘K
IND,8.8X8.4X3.8MM,0.82UH±20%,21A,SHD /TAPE & REEL - 13" REEL ROHS COMPLIANT: YES
| Part | Material - Core | Height - Seated (Max) | Height - Seated (Max) [Max] | Current - Saturation (Isat) | Current Rating (Amps) | Frequency - Self Resonant | Shielding | Inductance Frequency - Test | Tolerance | Package / Case | Q @ Freq | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | DC Resistance (DCR) [Max] | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Alloy Powder | 4 mm | 0.157 in | 32 A | 21 A | 46 MHz | Shielded | 100 kHz | 20 % | Nonstandard | 15 100 kHz | Surface Mount | -55 C | 150 °C | AEC-Q200 | 8.4 mm | 8.8 mm | 0.346 in | 0.331 in | 4.1 mOhm | 820 nH |
 Bourns Inc. | Alloy Powder | 4 mm | 0.157 in | 17 A | 7.5 A | 15 MHz | Shielded | 100 kHz | 20 % | Nonstandard | 20 100 kHz | Surface Mount | -55 C | 150 °C | AEC-Q200 | 8.4 mm | 8.8 mm | 0.346 in | 0.331 in | 35 mOhm | 5.6 µH |
