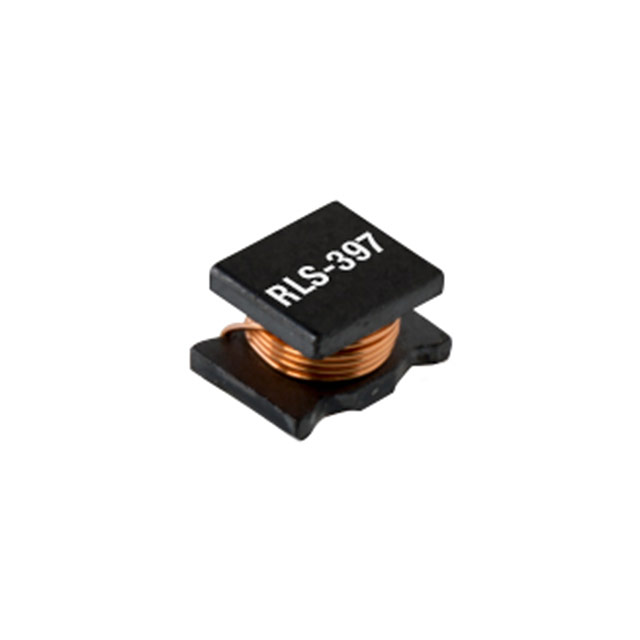

RLS-397 Series
Manufacturer: Recom Power
Beta
⌘K
POWER INDUCTOR (SMD), 3.9 ΜH, 1.32 A, UNSHIELDED, 2.1 A, RLS-397 SERIES
| Part | Package / Case | Current Rating (Amps) | Mounting Type | DC Resistance (DCR) [Max] | Shielding | Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Inductance | Current - Saturation (Isat) | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Inductance Frequency - Test | Tolerance | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 1812 (4532 Metric) | 1.32 A | Surface Mount | 140 mOhm | Unshielded | Wirewound | 0.122 in | 3.1 mm | 3.9 µH | 2.1 A | 0.177 in | 4.5 mm | 3.2 mm | 0.126 in | 100 kHz | 20 % | 125 °C | -40 C |
 Recom Power | 1812 (4532 Metric) | 1.32 A | Surface Mount | 140 mOhm | Unshielded | Wirewound | 0.122 in | 3.1 mm | 3.9 µH | 2.1 A | 0.177 in | 4.5 mm | 3.2 mm | 0.126 in | 100 kHz | 20 % | 125 °C | -40 C |
