LP Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

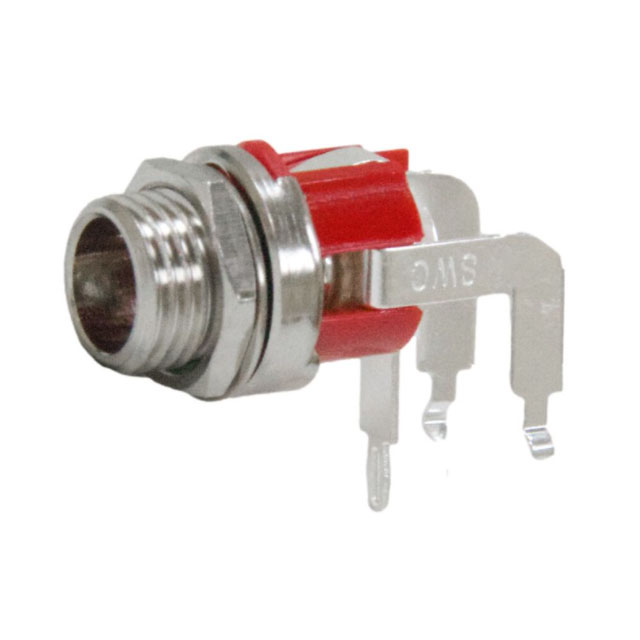

DC POWER CONNECTORS LOW PROFILE RAPC MOUNT DC POWER JACK, 2.1MM CENTER PIN, SHORT BUSHING
| Part | Thread Size | Body Color | Housing Material | Contact Material | Contact Material - Plating | Body Material | Mating Length/Depth | Mating Length/Depth | Mounting Feature | Gender | Internal Switch(s) | Voltage - Rated | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Connector Type | Termination | Features | Shielding | Industry Recognized Mating Diameter [diameter] | Industry Recognized Mating Diameter [diameter] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | 5/16"-32 | Silver | Copper Alloy | Copper Alloy | Silver | Copper Alloy | 0.374 in | 9.5 mm | Bulkhead - Front Side Nut | Male | Single Switch Normally Closed | 12 VDC | 2 | 3 | -55 C | 85 °C | Panel Mount Right Angle Through Hole | Jack | Solder | Mounting Hardware Thread Lock | Unshielded | 0.083 " 0.217 in | 2.1 mm 5.5 mm | 5 A |
