AC5E Series Series
Manufacturer: Adam Tech
Beta
⌘K

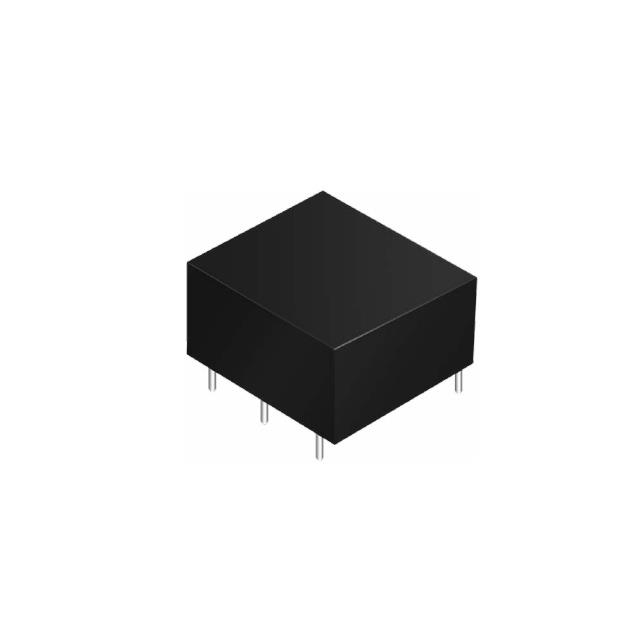

AC/DC POWER MODULES AC-DC CONVERTER, ISOLATED, UNIVERSAL INPUT 90-264VAC, SINGLE OUTPUT, 9VDC OUTPUT VOLTAGE, 5W
| Part | Line Regulation | Load Regulation | Type | Standard Number | Number of Outputs | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output 1 | Current - Output (Max) [Max] | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Mounting Type | Efficiency | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Power (Watts) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | 1 % | ±1% | Enclosed | 60950-1 62368-1 | 1 | 90 VAC 120 VDC | 264 VAC 370 VDC | 9 V | 555 mA | ITE (Commercial) | 70 °C | -25 °C | 5-DIP Module | Through Hole | 81 % | 25.4 mm | 1 " | 25.4 mm | 1 in | 16.1 mm | 0.63 in | 5 W | Universal Input |
