3099 Series

Catalog

CONN RING CIRC 16-22AWG #8 CRIMP

Part	Mounting Type	Thickness	Thickness	Stud/Tab Size	Terminal Type	Features	Contact Material	Contact Finish	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Wire Gauge [Max]	Wire Gauge [Min]	Length - Overall [x]	Length - Overall [x]	Insulation	Width - Outer Edges [y]	Width - Outer Edges [y]	Termination	Stud/Tab Size	Width - Outer Edges [x]	Width - Outer Edges [x]

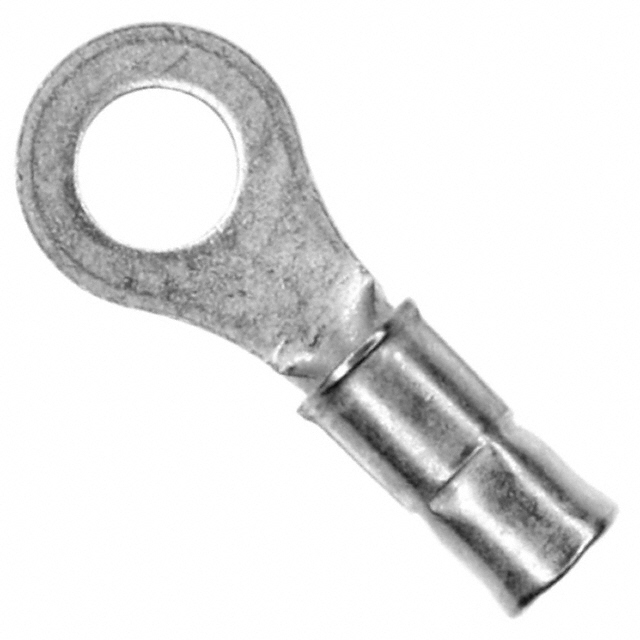

TE Connectivity Raychem Cable Protection 30996	Free Hanging (In-Line)	0.031 in	0.79 mm	8 Stud	Circular	Serrated Termination	Copper	Tin	2.03 mm	3.18 mm	0.125 "	0.08 in	22 AWG	16 AWG	0.775 in	19.69 mm	Non-Insulated	7.92 mm	0.312 in	Crimp
TE Connectivity Raychem Cable Protection 30993	Free Hanging (In-Line)	0.031 in	0.79 mm		Circular	Serrated Termination	Copper	Tin	2.67 mm	3.81 mm	0.15 "	0.105 in			0.79 in	20.07 mm	Non-Insulated			Crimp	10 Stud	0.343 in	8.71 mm
