NCV887100 Series

Non-Synchronous Boost Controller, Automotive Grade

Catalog

Non-Synchronous Boost Controller, Automotive Grade

Part	Utilized IC / Part	Main Purpose	Voltage - Output	Supplied Contents	Regulator Topology	Board Type	Voltage - Input [Min]	Voltage - Input [Max]	Outputs and Type	Outputs and Type	Current - Output	Frequency - Switching	Contents	Voltage - Input	Topology	Output Phases	Package / Case	Package / Case [y]	Package / Case [x]	Supplier Device Package	Qualification	Duty Cycle (Max) [Max]	Function	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Grade	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Output Type	Output Configuration	Control Features

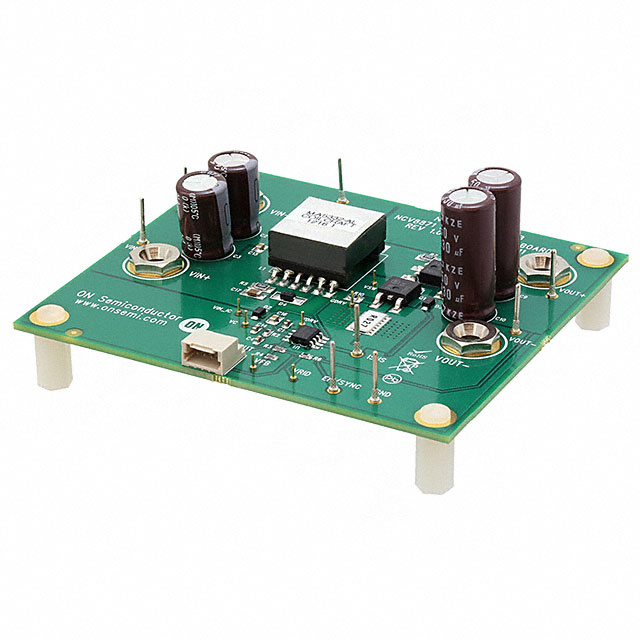

ON Semiconductor NCV8871FLYGEVB	NCV8871	DC/DC Step Down	12 V	Board(s)	Boost	Fully Populated	6 V	25 V	Non-Isolated	1	2 A	170 kHz

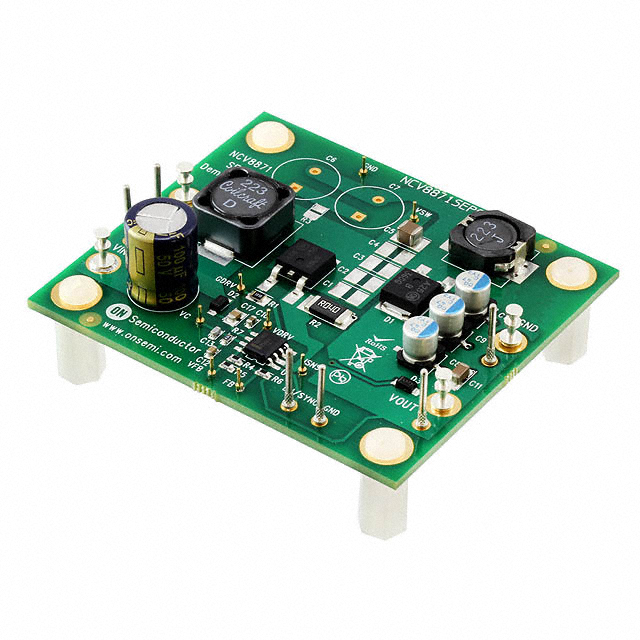

ON Semiconductor NCV8871SEPGEVB	NCV8871	DC/DC Step Down	12 V		Boost		6 V	40 V	1 Non-Isolated Output		2 A	170 kHz	Board(s)

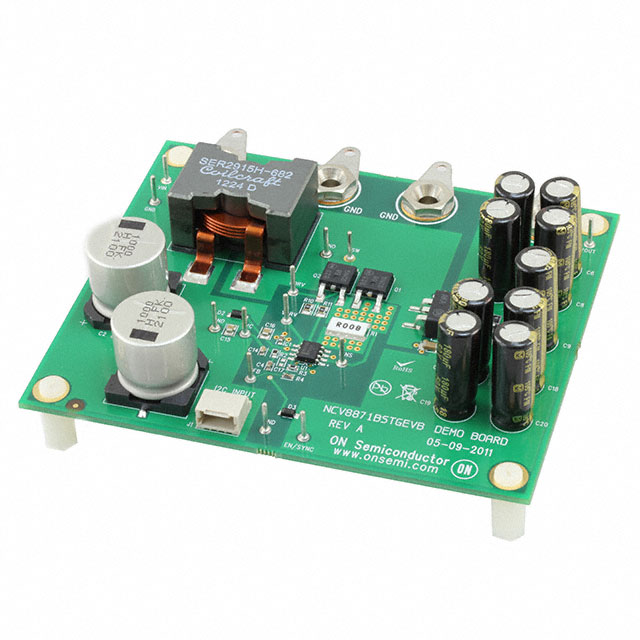

ON Semiconductor NCV8871BSTGEVB	NCV8871	DC/DC Step Up	18 V	Board(s)	Boost	Fully Populated			Non-Isolated	1	9 A	170 kHz		13.2 V

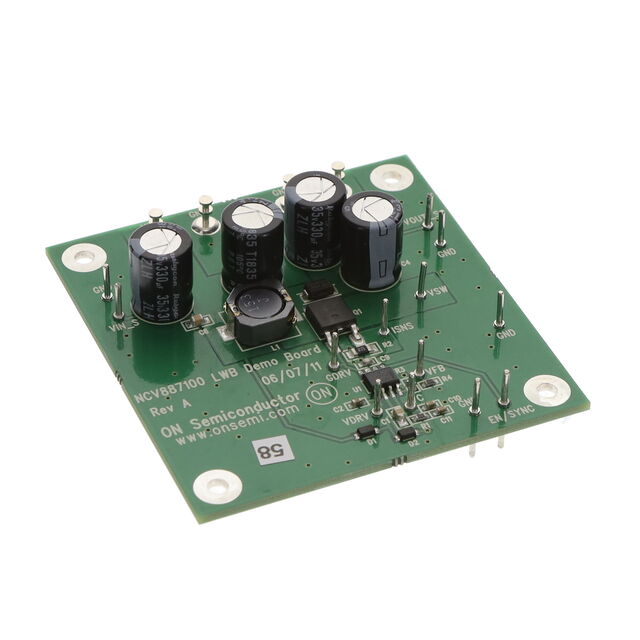

ON Semiconductor NCV8871LVBGEVB	NCV8871	DC/DC Step Up		Board(s)	Boost	Fully Populated			Non-Isolated	1
ON Semiconductor NCV887102D1R2G												1 MHz			Boost Flyback	1	8-SOIC	3.9 mm	0.154 in	8-SOIC	AEC-Q100	91 %	Step-Up Step-Up/Step-Down	1	150 °C	-40 °C	Surface Mount	Automotive	3.2 V	40 V	Transistor Driver	Positive	Current Limit Enable
ON Semiconductor NCV887100D1R2G												170 kHz			Boost Flyback	1	8-SOIC	3.9 mm	0.154 in	8-SOIC	AEC-Q100	88 %	Step-Up Step-Up/Step-Down	1	150 °C	-40 °C	Surface Mount	Automotive	3.2 V	40 V	Transistor Driver	Positive	Current Limit Enable

Catalog

Non-Synchronous Boost Controller, Automotive Grade

Key Features

• Peak Current Mode Control with Internal Slope Compensation

• 1.2 V 2% Reference voltage

• Wide Input Voltage Range of 3.2 V to 40 Vdc, 45 V Load Dump

• Input undervoltage lockout (UVLO)

• Internal SoftStart

• Low quiescent current in sleep mode

• Cycle-by-cycle current limit protection

• Hiccup-mode short-circuit protection (SCP)

• Thermal shutdown (TSD)

Description

The NCV8871 is an adjustable output non-synchronous boost controller which drives an external N-channel MOSFET. The device uses peak current mode control with internal slope compensation. The IC incorporates an internal regulator that supplies charge to the gate driver. Protection features include internally-set soft-start, undervoltage lockout, cycle-by-cycle current limiting, hiccup-mode short-circuit protection and thermal shutdown. Additional features include low quiescent current sleep mode and externally-synchronizable switching frequency.
