SSV66A-34N Series

Liquid Level Sensors LLS

Manufacturer: Sensata-Crydom

Catalog

Liquid Level Sensors LLS

Catalog

Liquid Level Sensors LLS

Part	Operating Temperature	Voltage Rating	Current	Mounting Type	Material - Housing & Prism	Output Configuration	Output Type	Minimum Liquid Specific Gravity [Min]	Type	Switch Actuation Level	Switch Actuation Level	Mounting Type [custom]	Mounting Type [custom]	Mounting Type [custom]
Sensata-Crydom SSV66A84E34N183	120 °C	300 VDC 300 VAC	500 mA	Threaded	316 Stainless Steel	SPST-NC/NO	Switch	0.85	Liquid

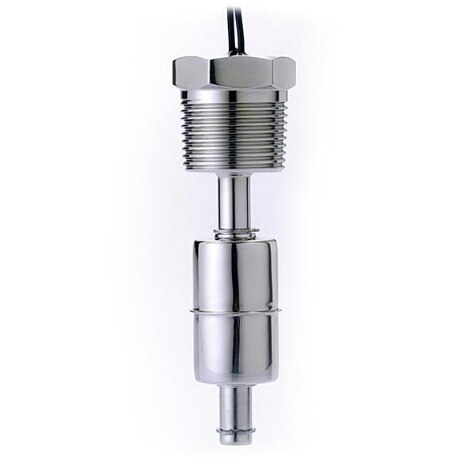

Sensata-Crydom SSV66A24E34N183	120 °C	300 VDC 300 VAC	500 mA		316 Stainless Steel	SPST-NC/NO	Switch (Single Float)	0.85	Liquid	0.945 in	24 mm	3/4	Male NPT	19.05 mm
Sensata-Crydom SSV66A24A813E34N183	120 °C	300 VDC 300 VAC	500 mA		316 Stainless Steel	SPST-NC/NO	Switch (2) (Dual Float)	0.85	Liquid	0.945 in 32 in	24 mm 813 mm	3/4	Male NPT	19.05 mm
Sensata-Crydom SSV66A813E34N183	120 °C	300 VDC 300 VAC	500 mA		316 Stainless Steel	SPST-NC/NO	Switch (Single Float)	0.85	Liquid	32 in	813 mm	3/4	Male NPT	19.05 mm
Sensata-Crydom SSV66A24E34NP	120 °C	300 VDC 300 VAC	500 mA		316 Stainless Steel	SPST-NC/NO	Switch (Single Float)	0.85	Liquid	0.945 in	24 mm	3/4	Male NPT	19.05 mm
Sensata-Crydom SSV66A813E34NP	120 °C	300 VDC 300 VAC	500 mA		316 Stainless Steel	SPST-NC/NO	Switch (Single Float)	0.85	Liquid	32 in	813 mm	3/4	Male NPT	19.05 mm
Sensata-Crydom SSV66A24A813E34NP	120 °C	300 VDC 300 VAC	500 mA		316 Stainless Steel	SPST-NC/NO	Switch (2) (Dual Float)	0.85	Liquid	0.945 in 32 in	24 mm 813 mm	3/4	Male NPT	19.05 mm

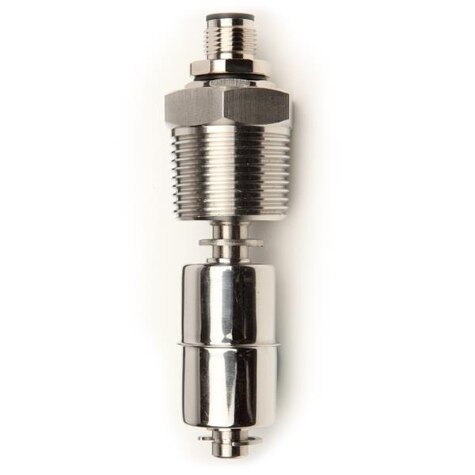

Sensata-Crydom SSV66A84E34NP	120 °C	300 VDC 300 VAC	500 mA	Male 3/4" (19.05mm) BSP	316 Stainless Steel	SPST-NC/NO	Switch (Single Float)	0.85	Liquid
