794378 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

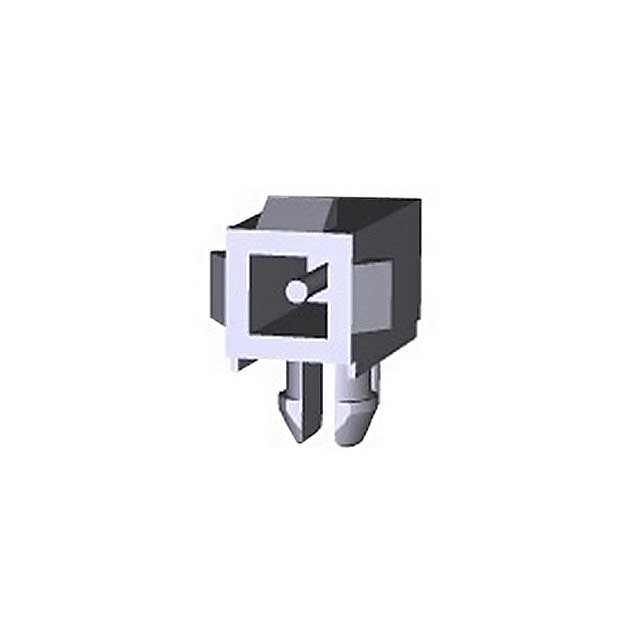

CONN HEADER R/A 1POS
| Part | Contact Finish Thickness - Post | Features | Connector Type | Contact Type | Contact Length - Post | Contact Length - Post | Number of Positions | Termination | Insulation Color | Mounting Type | Contact Finish - Post | Number of Rows | Insulation Height | Insulation Height | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Shape | Shrouding | Material Flammability Rating | Number of Positions Loaded | Fastening Type | Contact Finish - Mating | Style | Contact Material | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 3.81 Ám | Board Lock | Header | Male Pin | 3.68 mm | 0.145 in | 1 | Solder | Natural | Right Angle Through Hole | Tin | 1 | 5.72 mm | 0.225 in | 0.76 Ám | 30 Áin | Circular | Shrouded - 4 Wall | UL94 V-2 | All | Locking Ramp | Gold | Board to Cable/Wire | Brass | Nylon Polyamide (PA) |
