Positive Lock 187 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

187 POSITIVE MK-2 REC

...

Part	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Insulation	Length - Overall [x]	Length - Overall [x]	Contact Finish	Gender	Terminal Type	Tab Thickness	Tab Thickness	Contact Material	Tab Width [x]	Tab Width [x]	Termination	Tab Length	Tab Length	Tab Length [x]	Tab Length [x]	For Use With/Related Products	For Use With/Related Products	Color	Terminal Size	Terminal Size	Style	Stacking Direction	Tab Width	Tab Width	Insulation Diameter [Max]	Insulation Diameter	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Number of Positions	Note	Material

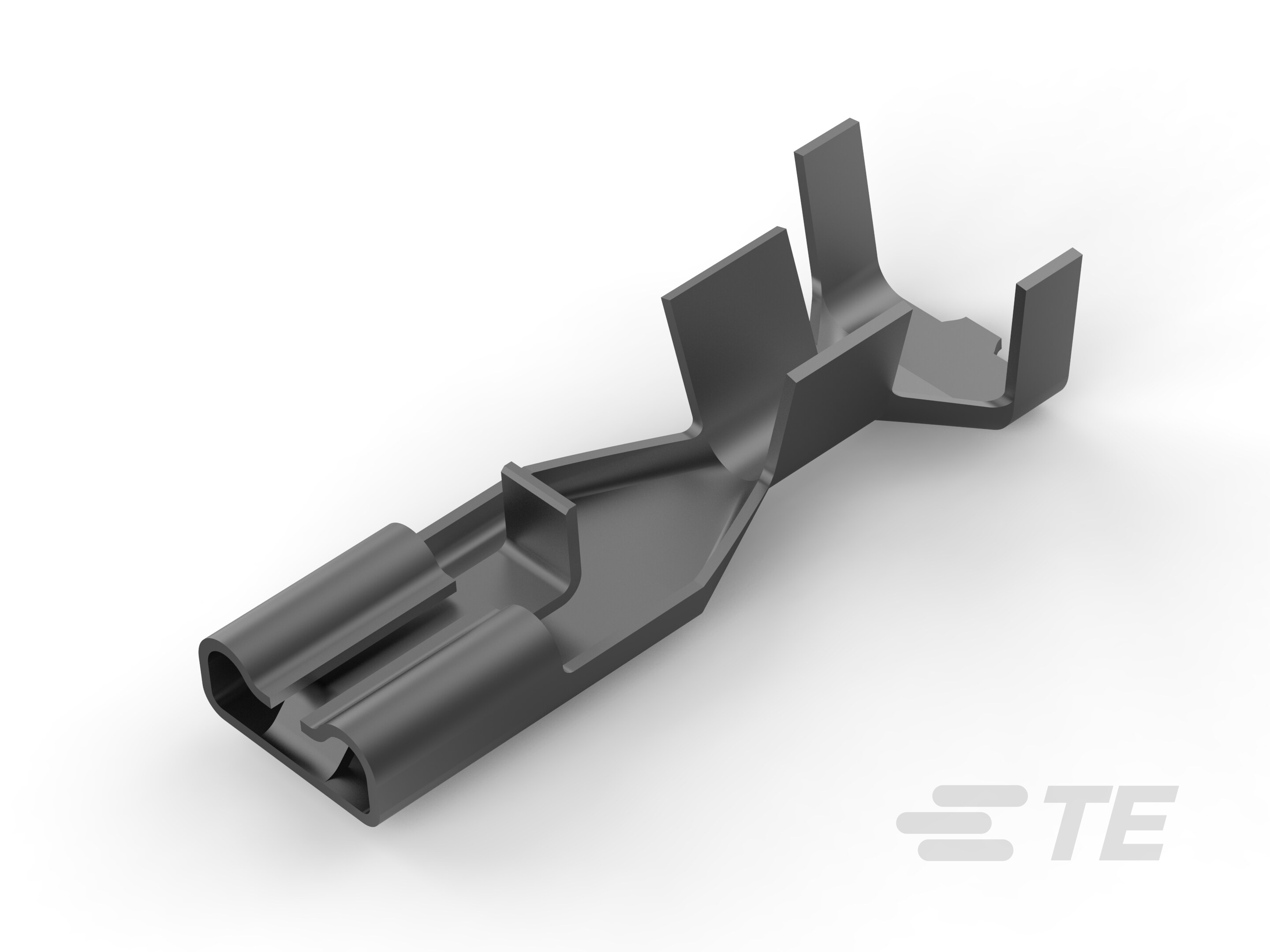

TE Connectivity AMP Connectors 1318306-1	Free Hanging (In-Line)	14 AWG	18 AWG	Non-Insulated	0.85 in	21.59 mm	Tin	Female	Standard	0.81 mm	0.032 in	Brass	0.187 in	4.75 mm	Crimp	6 mm	0.236 in

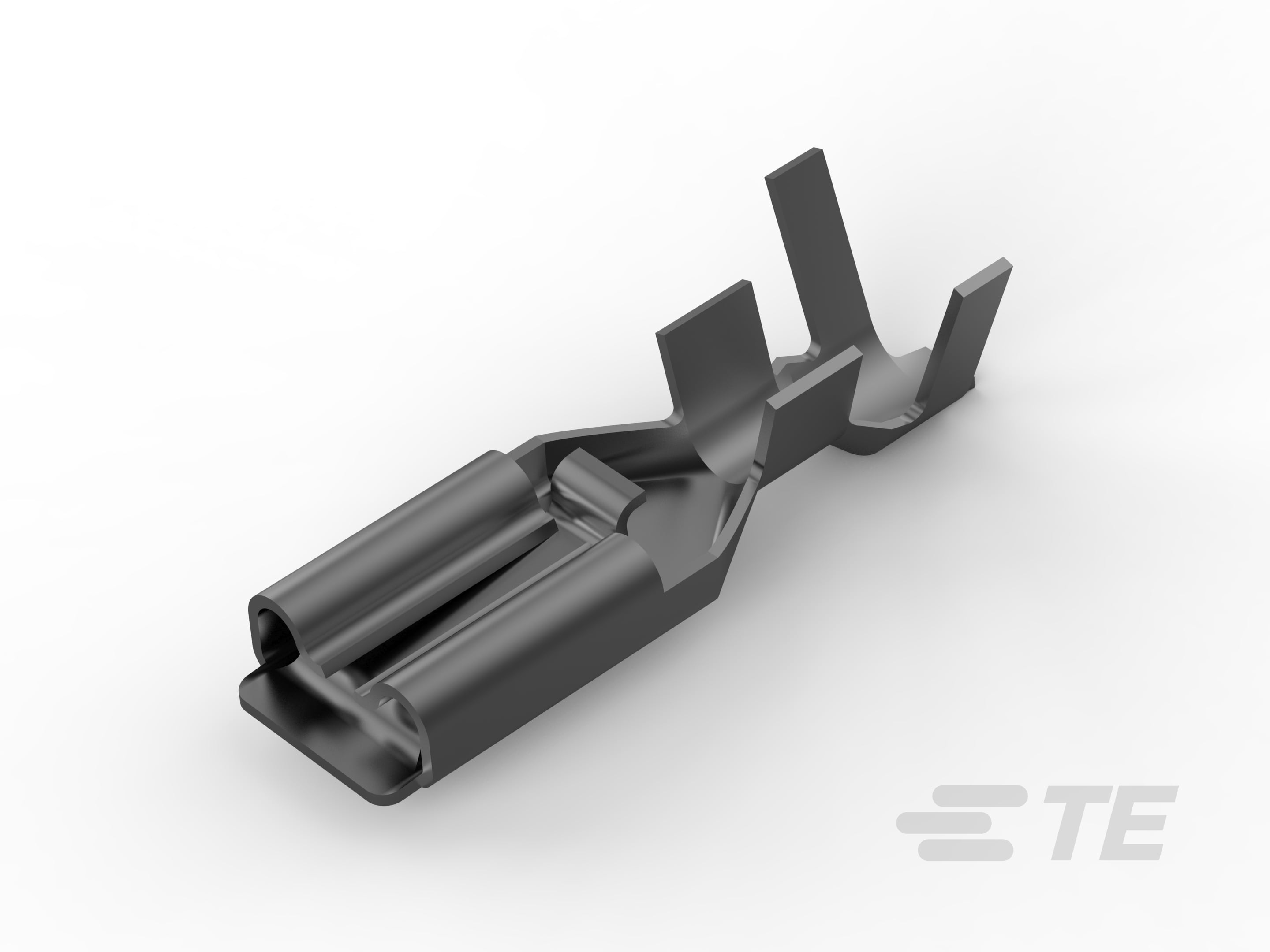

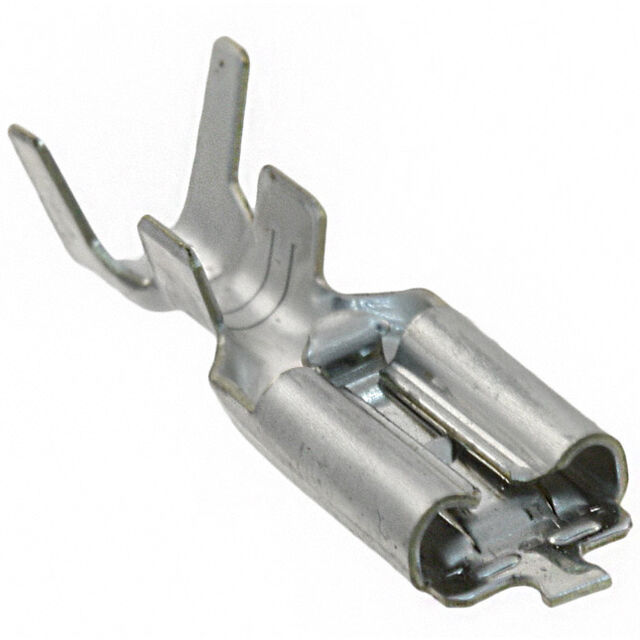

TE Connectivity AMP Connectors 173724-5	Free Hanging (In-Line)	14 AWG	20 AWG	Non-Insulated	0.677 "	17.2 mm	Tin	Female	Standard	0.51 mm	0.02 in	Phosphor Bronze	0.187 in	4.75 mm	Crimp			7.3 mm	0.287 "
TE Connectivity AMP Connectors 1-172075-1	Free Hanging (In-Line)							Female Receptacle	Quick Connect Disconnect											0.187 " 4.75 mm	Quick Connects	Natural	0.187 in	4.75 mm	Housing	Top to Bottom
TE Connectivity AMP Connectors 2390259-1	Free Hanging (In-Line)	14 AWG	16 AWG	Non-Insulated	0.699 in	17.75 mm	Tin	Female	Standard	0.79 mm	0.031 in	Brass	0.187 in	4.75 mm	Crimp	5 mm	0.197 in										5.6 mm	0.22 in	0.169 in	3 mm 4.29 mm	0.118 in
TE Connectivity AMP Connectors 1217096-2	Free Hanging (In-Line)	14 AWG	18 AWG	Non-Insulated	0.67 in	17.02 mm	Tin	Female	Standard	0.81 mm	0.032 in	Brass	0.187 in	4.75 mm	Crimp	6.48 mm	0.255 in

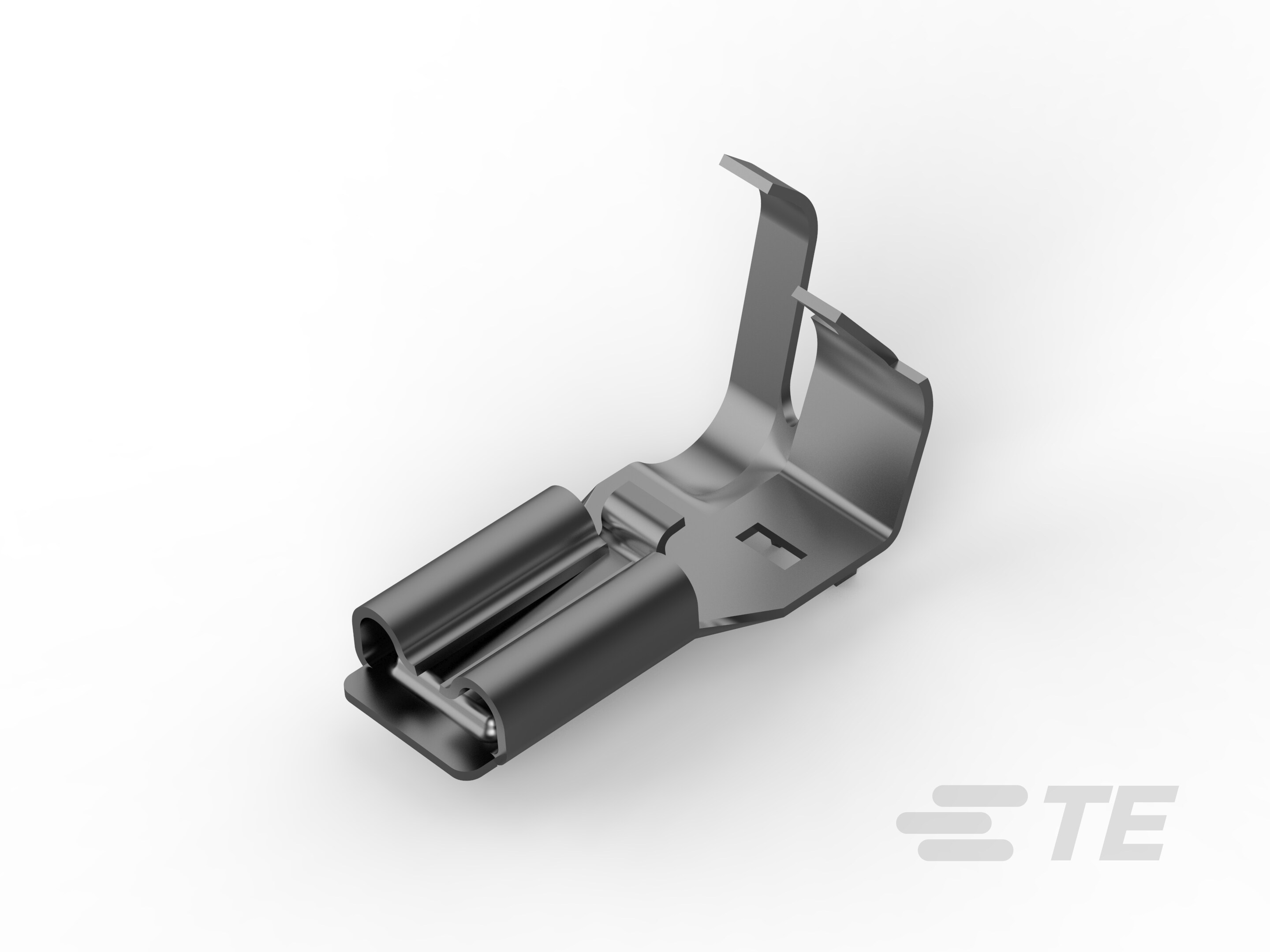

TE Connectivity AMP Connectors 2232342-1	Free Hanging (In-Line)			Non-Insulated			Tin	Female	Angled - 90° Flag	0.51 mm	0.02 in	Brass	0.187 in	4.75 mm	Crimp			6.3 mm	0.248 "
TE Connectivity AMP Connectors 3-2299287-1	Free Hanging (In-Line) Right Angle	19.5 AWG	24 AWG	Mating End Insulated			Tin	Female	Angled - 90° Flag	0.51 mm	0.02 in	Brass	0.187 in	4.75 mm	Crimp														0.11 "		0.06 in	1.52 mm	2.79 mm
TE Connectivity AMP Connectors 173723-1	Free Hanging (In-Line)	19.5 AWG	26 AWG	Non-Insulated	0.677 "	17.2 mm	Tin	Female	Standard	0.51 mm	0.02 in	Brass	0.187 in	4.75 mm	Crimp			7.3 mm	0.287 "															0.142 in	3.61 mm	1.3 mm	0.051 "

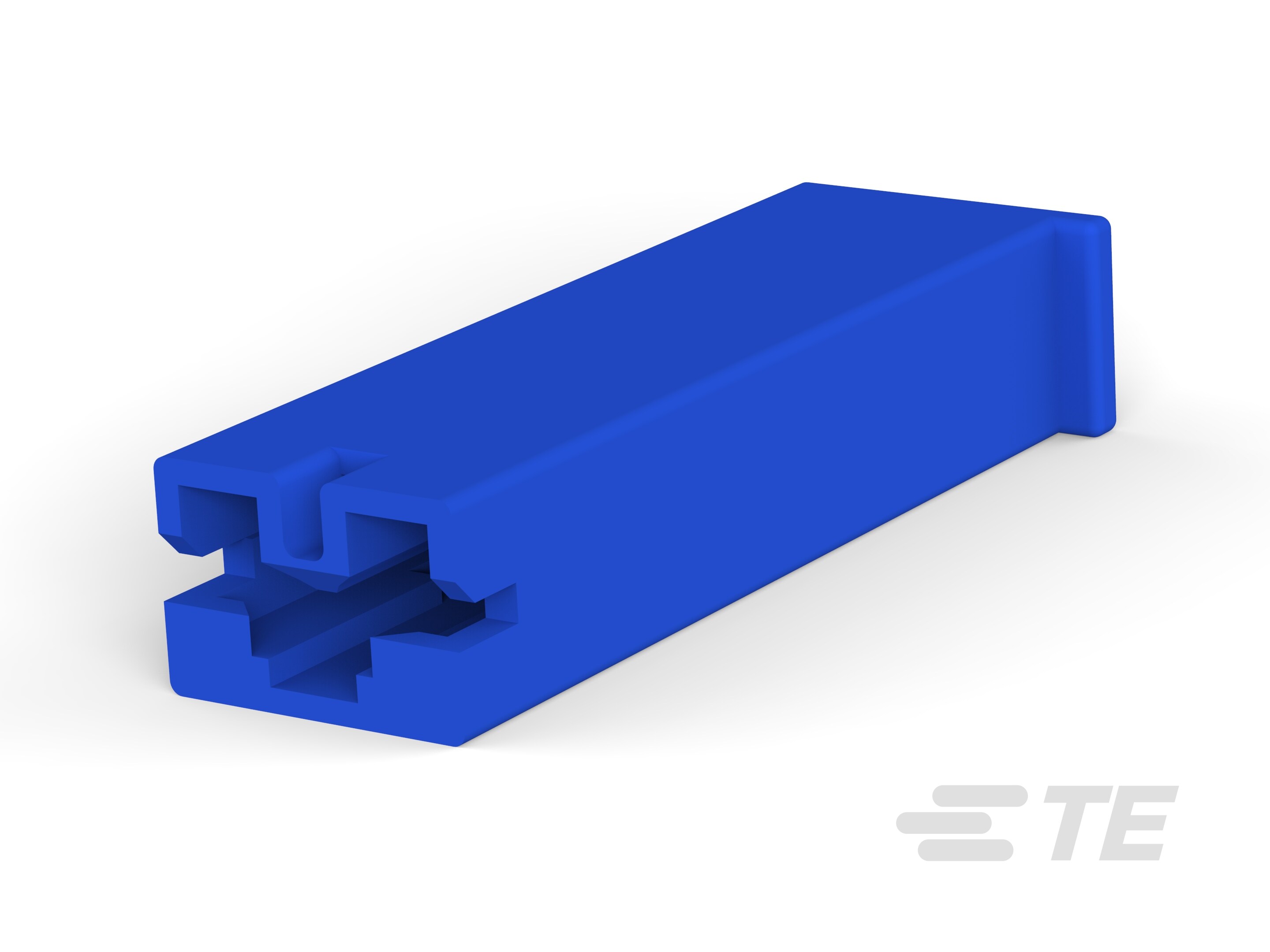

TE Connectivity AMP Connectors 172074-6	Free Hanging (In-Line)							Female Receptacle	Quick Connect Disconnect											0.187 " 4.75 mm	Quick Connects	Blue	0.187 in	4.75 mm	Housing													1
TE Connectivity AMP Connectors 175578-1	Free Hanging (In-Line)							Female Receptacle	Quick Connect Disconnect											0.187 " 4.75 mm	Quick Connects	Natural	0.187 in	4.75 mm	Housing	Top to Bottom												2	Contacts Not Included	Nylon
