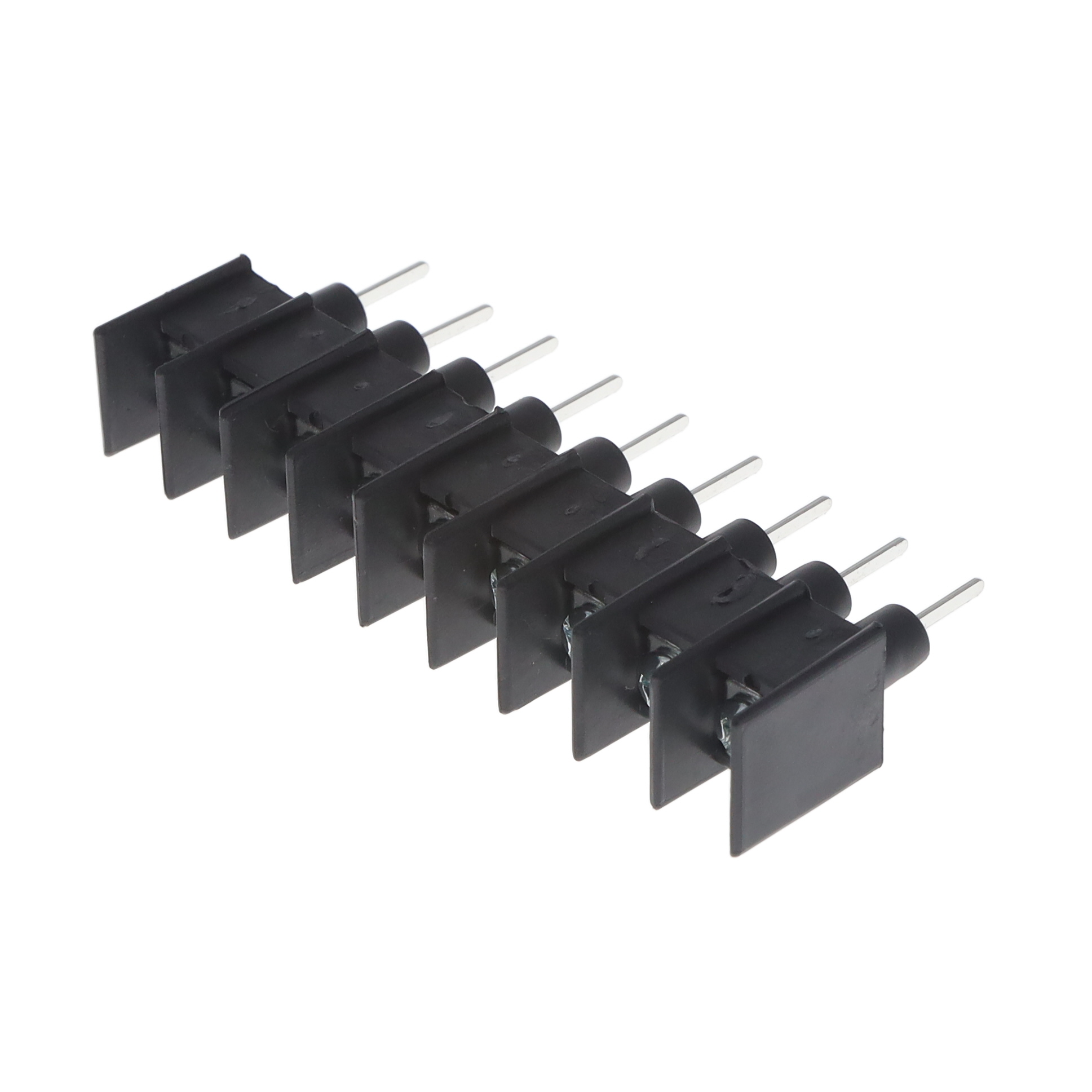

T38360 Series

Catalog

CONN BARRIER STRIP 1CIRCUIT

Part	Material - Insulation	Terminal Screw Material	Operating Temperature	Mounting Type	Material Flammability Rating	Terminal Screw Finish	Top Termination	Wire Gauge [Max]	Wire Gauge [Min]	Current Rating (Amps)	Number of Rows	Barrier Type	Voltage Rating	Number of Circuits	Bottom Termination	Number of Wire Entries	Terminal Block Type	Pitch	Pitch	Number of Circuits [custom]
Curtis Industries T38360-01-0	Polypropylene (PP)	Steel	105 C	Chassis Panel	UL94 V-0	Nickel	Screws	22 AWG	12 AWG	20 A	1	2 Wall (Dual)	300 VDC	1	Insulated Wire Wrap	1	Barrier Block
Curtis Industries T38360-03-0	Polypropylene (PP)	Steel	105 C	Chassis Panel	UL94 V-0	Nickel	Screws	22 AWG	12 AWG	20 A	1	2 Wall (Dual)	300 VDC	3	Insulated Wire Wrap	3	Barrier Block	9.53 mm	0.375 in
Curtis Industries T38360-23-0	Polypropylene (PP)	Steel	105 C	Chassis Panel	UL94 V-0	Nickel	Screws	22 AWG	12 AWG	20 A	1	2 Wall (Dual)	300 VDC		Insulated Wire Wrap	23	Barrier Block	9.53 mm	0.375 in	23
Curtis Industries T38360-12-0	Polypropylene (PP)	Steel	105 C	Chassis Panel	UL94 V-0	Nickel	Screws	22 AWG	12 AWG	20 A	1	2 Wall (Dual)	300 VDC	12	Insulated Wire Wrap	12	Barrier Block	9.53 mm	0.375 in
Curtis Industries T38360-05-0	Polypropylene (PP)	Steel	105 C	Chassis Panel	UL94 V-0	Nickel	Screws	22 AWG	12 AWG	20 A	1	2 Wall (Dual)	300 VDC	5	Insulated Wire Wrap	5	Barrier Block	9.53 mm	0.375 in
Curtis Industries T38360-26-0	Polypropylene (PP)	Steel	105 C	Chassis Panel	UL94 V-0	Nickel	Screws	22 AWG	12 AWG	20 A	1	2 Wall (Dual)	300 VDC	26	Insulated Wire Wrap	26	Barrier Block	9.53 mm	0.375 in
Curtis Industries T38360-16-0	Polypropylene (PP)	Steel	105 C	Chassis Panel	UL94 V-0	Nickel	Screws	22 AWG	12 AWG	20 A	1	2 Wall (Dual)	300 VDC	16	Insulated Wire Wrap	16	Barrier Block	9.53 mm	0.375 in
Curtis Industries T38360-13-0	Polypropylene (PP)	Steel	105 C	Chassis Panel	UL94 V-0	Nickel	Screws	22 AWG	12 AWG	20 A	1	2 Wall (Dual)	300 VDC	13	Insulated Wire Wrap	13	Barrier Block	9.53 mm	0.375 in
Curtis Industries T38360-22-0	Polypropylene (PP)	Steel	105 C	Chassis Panel	UL94 V-0	Nickel	Screws	22 AWG	12 AWG	20 A	1	2 Wall (Dual)	300 VDC	22	Insulated Wire Wrap	22	Barrier Block	9.53 mm	0.375 in
Curtis Industries T38360-02-0	Polypropylene (PP)	Steel	105 C	Chassis Panel	UL94 V-0	Nickel	Screws	22 AWG	12 AWG	20 A	1	2 Wall (Dual)	300 VDC	2	Insulated Wire Wrap	2	Barrier Block	9.53 mm	0.375 in
