DCP-RJ5 Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K
RJ45 CAT 5E THREADED FEED-THRU (TO SAME CONNECTOR)
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Housing Material | Contact Material | Shielding | Features | Convert To (Adapter End) | Convert From (Adapter End) | Ratings | Shell Material, Finish | Ingress Protection | Mounting Type | Type | Shield Material | Tab Direction | Number of Ports | Termination | Number of Positions/Contacts | Number of Rows | LED Color | Orientation | Connector Type | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

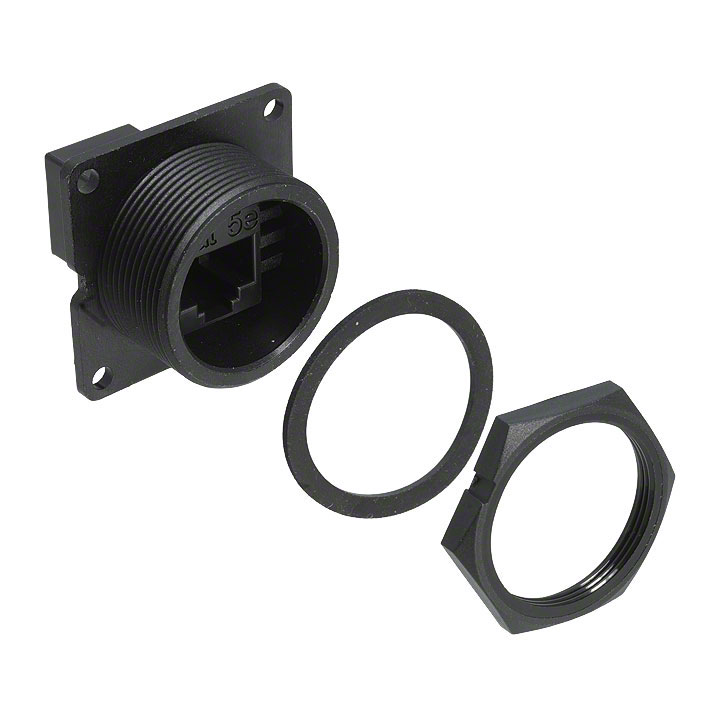

 SWITCHCRAFT/CONXALL | -10 °C | 60 °C | Gold | Thermoplastic | Copper Alloy | Unshielded | Circular Threaded Coupling | Jack 8p8c (RJ45) | Jack 8p8c (RJ45) | Cat5e | Thermoplastic | IP67/IP68 | Flange Panel Mount | Coupler | ||||||||||

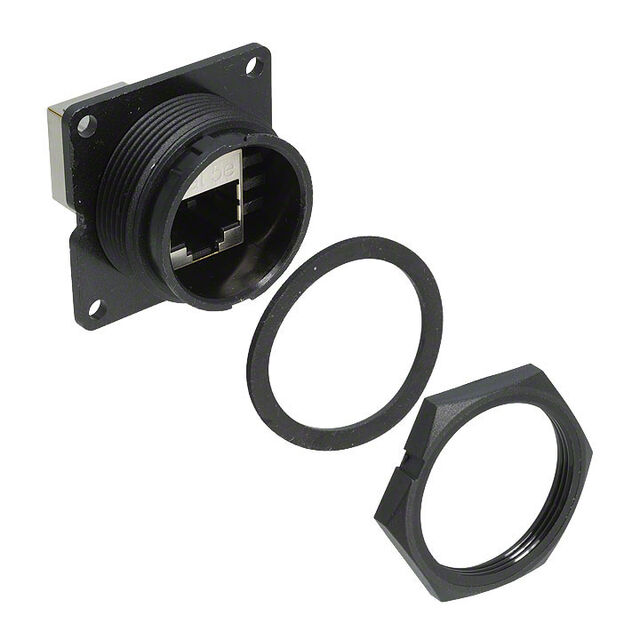

 SWITCHCRAFT/CONXALL | -10 °C | 60 °C | Gold | Thermoplastic | Copper Alloy | Shielded | Quick Connect | Jack 8p8c (RJ45) | Jack 8p8c (RJ45) | Cat5e | Thermoplastic | IP67/IP68 | Flange Panel Mount | Coupler | Copper Alloy | |||||||||
 SWITCHCRAFT/CONXALL | -10 °C | 60 °C | Gold | Thermoplastic | Copper Alloy | Shielded | Quick Connect | Cat5e | IP67/IP68 | Flange Panel Mount | User Selectable | 1 | IDC | 8p8c (RJ45 Ethernet) | 1 | Does Not Contain LED | Straight | Jack | ||||||
 SWITCHCRAFT/CONXALL | -10 °C | 60 °C | Gold | Thermoplastic | Copper Alloy | Unshielded | Quick Connect | Jack 8p8c (RJ45) | Jack 8p8c (RJ45) | Cat5e | Thermoplastic | IP67/IP68 | Flange Panel Mount | Coupler | ||||||||||

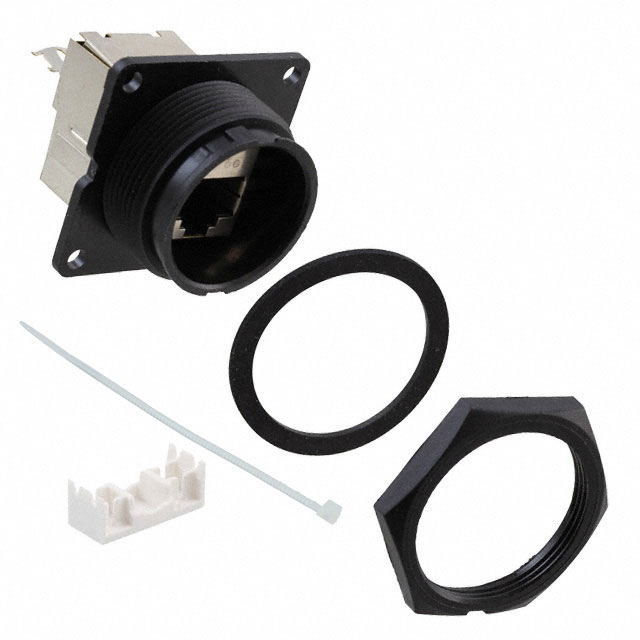

 SWITCHCRAFT/CONXALL | -10 °C | 60 °C | Gold | Thermoplastic | Copper Alloy | Shielded | Quick Connect | Cat5e | IP67/IP68 | Flange Panel Mount | Down | 1 | IDC | 8p8c (RJ45 Ethernet) | 1 | Does Not Contain LED | Jack | 90 ° | ||||||

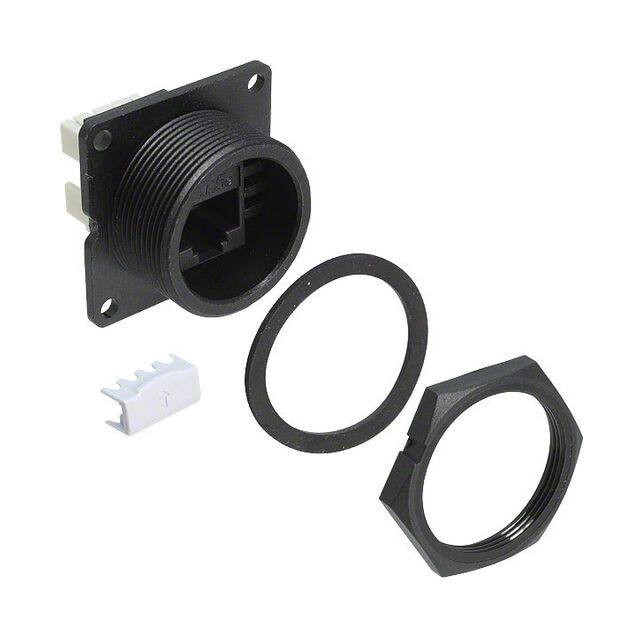

 SWITCHCRAFT/CONXALL | -10 °C | 60 °C | Gold | Thermoplastic | Copper Alloy | Unshielded | Circular Threaded Coupling | Cat5e | IP67/IP68 | Flange Panel Mount | User Selectable | 1 | IDC | 8p8c (RJ45 Ethernet) | 1 | Does Not Contain LED | Straight | Jack |
