PTS 1,5 Series
Manufacturer: Phoenix Contact
Beta
⌘K

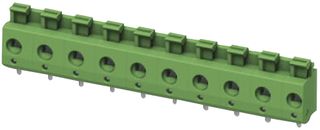

WIRE-TO-BOARD TERMINAL BLOCK, 10, 400 V, 12 A, 26 AWG, 14 AWG, 2.5 MM ROHS COMPLIANT: YES
| Part | Housing Material | Pitch | Pitch | Current | Mounting Type | Color | Wire Termination | Positions Per Level | Wire Gauge [Min] | Wire Gauge [Max] | Mating Orientation | Voltage | Number of Levels |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

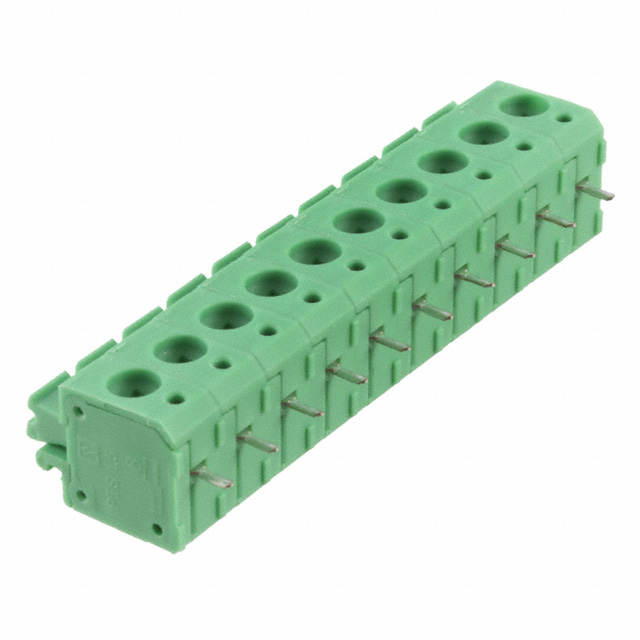

 Phoenix Contact | Polyamide (PA) Nylon | 0.197 in | 5 mm | 10 A | Through Hole | Green | Screwless - Push Button Clamp | 10 | 14 AWG | 26 AWG | Horizontal with Board | 300 VDC | 1 |

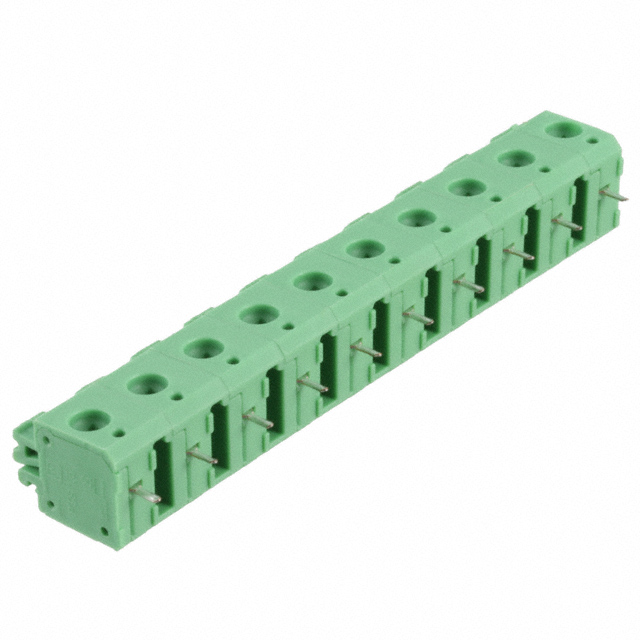

 Phoenix Contact | Polyamide (PA) Nylon | 0.295 in | 7.5 mm | 10 A | Through Hole | Green | Screwless - Push Button Clamp | 10 | 14 AWG | 26 AWG | Horizontal with Board | 300 VDC | 1 |
 Phoenix Contact | Polyamide (PA) Nylon | 0.295 in | 7.5 mm | 10 A | Through Hole | Green | Screwless - Push Button Clamp | 2 | 14 AWG | 26 AWG | Horizontal with Board | 300 VDC | 1 |
