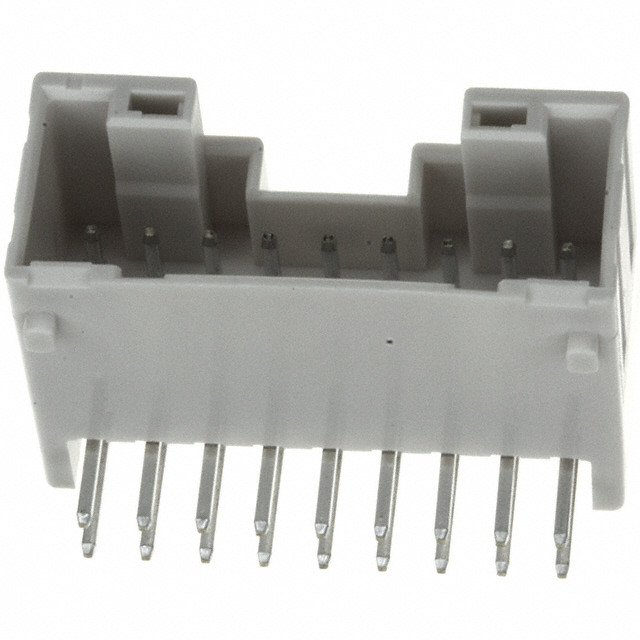

S18B-PUD Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 18POS 2MM
| Part | Pitch - Mating | Pitch - Mating | Mounting Type | Number of Positions | Contact Shape | Contact Material | Contact Type | Insulation Material | Style | Insulation Color | Features | Voltage Rating | Number of Positions Loaded | Material Flammability Rating | Connector Type | Shrouding | Number of Rows [custom] | Row Spacing - Mating | Row Spacing - Mating | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Contact Length - Post | Contact Length - Post | Termination | Fastening Type | Contact Finish - Post | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 0.079 " | 2 mm | Right Angle Through Hole | 18 | Square | Copper Alloy | Male Pin | Glass Filled Nylon 6/6 Polyamide (PA66) | Board to Cable/Wire | Natural | Board Guide | 250 V | All | UL94 V-0 | Header | Shrouded - 4 Wall | 2 | 2 mm | 0.079 in | 3 A | 85 °C | -25 °C | 0.118 in | 3 mm | Solder | Latch Holder | Tin | 0.335 " | 8.51 mm |
