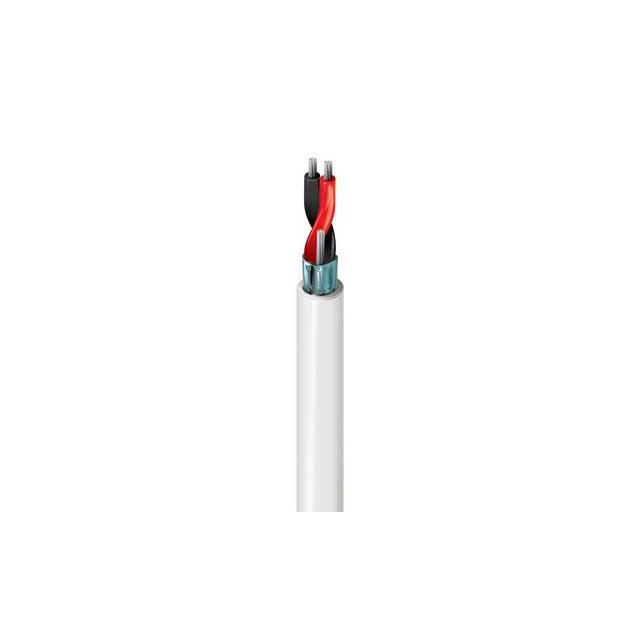

1801B Series
Manufacturer: Belden Inc.
Beta
⌘K
2 #24 NFFEP FS FLMRST
| Part | Shield Material | Shield Coverage | Features | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Conductor Material | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Jacket Color | Number of Conductors | Conductor Insulation | Length | Length | Ratings | Voltage | Jacket (Insulation) Material | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Polyester | 100 % | Drain Wire | Foil | 4.19 mm | 0.165 in | Multi-Conductor | 7 | 32 AWG | Audio | Copper Tinned | 0.381 mm | 0.015 in | Natural | 2 | Foam Fluorinated Ethylene-Propylene (FFEP) | 304.8 m | 1000 ft | UL Style CMP | 300 VDC | Poly-Vinyl Chloride (PVC) | 24 AWG |
Belden Inc. | Aluminum Polyester | 100 % | Drain Wire | Foil | 4.19 mm | 0.165 in | Multi-Conductor | 7 | 32 AWG | Audio | Copper Tinned | 0.381 mm | 0.015 in | Natural | 2 | Foam Fluorinated Ethylene-Propylene (FFEP) | 304.8 m | 1000 ft | UL Style CMP | 300 VDC | Poly-Vinyl Chloride (PVC) | 24 AWG |
Belden Inc. | Aluminum Polyester | 100 % | Drain Wire | Foil | 4.19 mm | 0.165 in | Multi-Conductor | 7 | 32 AWG | Audio | Copper Tinned | 0.381 mm | 0.015 in | Natural | 2 | Foam Fluorinated Ethylene-Propylene (FFEP) | 152.4 m | 500 ft | UL Style CMP | 300 VDC | Poly-Vinyl Chloride (PVC) | 24 AWG |
