EVQ-PS Series

Catalog

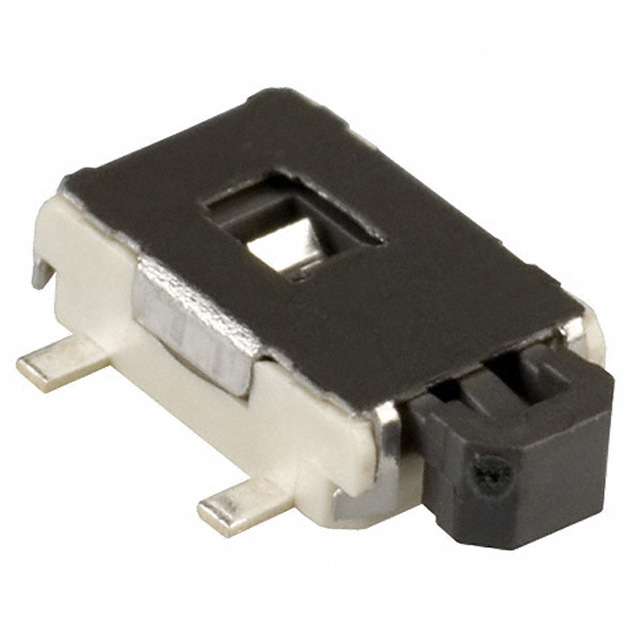

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Mounting Type	Actuator Orientation	Operating Force	Switch Function	Illumination	Termination Style	Contact Rating @ Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Actuator Type	Outline [y]	Outline [x]	Circuit	Switch Travel [custom]
Panasonic Industrial Automation Sales EVQ-PSR02K	Surface Mount Right Angle	Side Actuated	220 gf	Off-Mom	Non-Illuminated	Gull Wing	0.05 A 12 VDC	-20 C	70 °C	100000 Cycles	Standard	6.1 mm	6 mm	SPST-NO	0.3 mm
Panasonic Industrial Automation Sales EVQ-PSL02K	Surface Mount Right Angle	Side Actuated		Off-Mom	Non-Illuminated	Gull Wing	0.05 A 12 VDC	-20 C	70 °C	100000 Cycles	Standard	6.1 mm	6 mm	SPST-NO	0.3 mm
Panasonic Industrial Automation Sales EVQ-PSD02K	Surface Mount Right Angle	Side Actuated		Off-Mom	Non-Illuminated	J Lead	0.05 A 12 VDC	-20 C	70 °C	100000 Cycles	Standard	6.1 mm	4.6 mm	SPST-NO	0.3 mm
Panasonic Industrial Automation Sales EVQ-PSM02K	Surface Mount Right Angle	Side Actuated		Off-Mom	Non-Illuminated	Gull Wing	0.05 A 12 VDC	-20 C	70 °C	100000 Cycles	Standard	6.1 mm	6 mm	SPST-NO	0.3 mm
