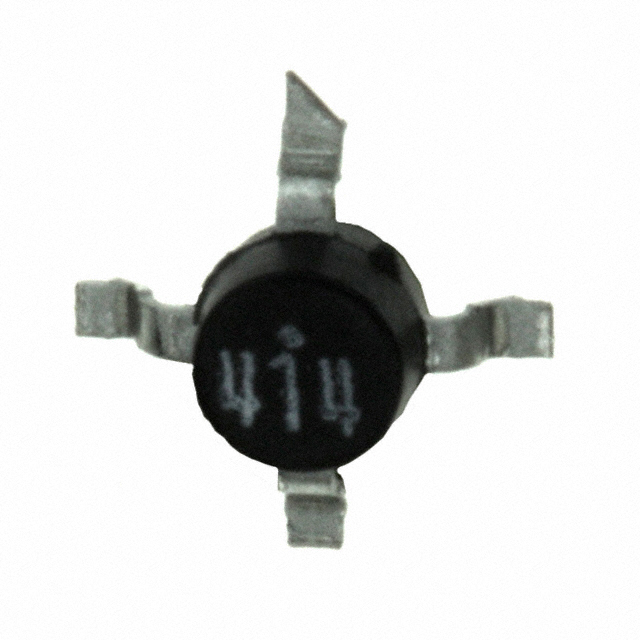

AT-41486 Series

Catalog

RF TRANS NPN 12V 8GHZ 86 PLASTIC

Part	Operating Temperature	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Power - Max [Max]	Current - Collector (Ic) (Max) [Max]	Transistor Type	Frequency - Transition	Gain [Min]	Gain [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Noise Figure (dB Typ @ f) [Min]	Noise Figure (dB Typ @ f) [Max]	Supplier Device Package	Mounting Type
Broadcom Limited AT-41486-BLKG	150 °C	30	500 mW	60 mA	NPN	8 GHz	9 dB	18 dB	12 V	1.4 dB	3 dB	86 Plastic	Surface Mount
Broadcom Limited AT-41486-TR1G	150 °C	30	500 mW	60 mA	NPN	8 GHz	9 dB	18 dB	12 V	1.4 dB	3 dB	86 Plastic	Surface Mount
Broadcom Limited AT-41486-TR2G	150 °C	30	500 mW	60 mA	NPN	8 GHz	9 dB	18 dB	12 V	1.4 dB	3 dB	86 Plastic	Surface Mount
