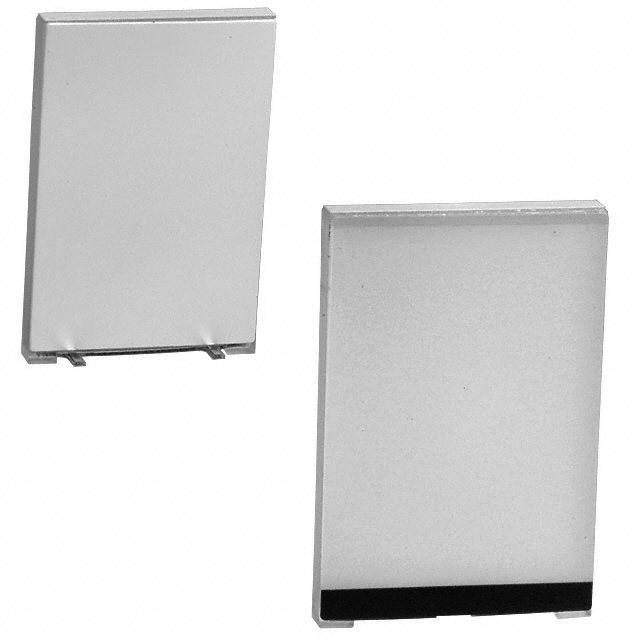

SSB-CEL Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K
71MMX72MMV.A. EDGELT BKT 3.5V 14
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Color | Voltage - Forward (Vf) (Typ) | Current - Test | Termination Style | Output | Style | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | CCT (K) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumex Opto/Components Inc. | 85 °C | -40 C | White | 3.5 V | 140 mA | Solder | 230 cd/m² | Rectangular | 3 mm | 70.5 mm | 72 mm | |
Lumex Opto/Components Inc. | 85 °C | -40 C | White | 3.5 V | 200 mA | Solder | 350 cd/m² | Rectangular | 4.1 mm | 95 mm | 127.4 mm | |
Lumex Opto/Components Inc. | 85 °C | -25 °C | White | 3.5 V | Solder | 140 cd/m² | Rectangular | 3.3 mm | 40 mm | 80 mm | ||
Lumex Opto/Components Inc. | 70 °C | -20 ░C | White | 9.7 V | 240 mA | BHSR-02VS-1 JST Connector | 5000 cd/m² | Rectangular | 6.5 mm | 89.75 mm | 156.9 mm | |
 Lumex Opto/Components Inc. | 70 °C | -20 ░C | Green | 2.2 V | 40 mA | Solder | 12 cd/m² | Rectangular | 3 mm | 18.4 mm | 24 mm | 574 nm |
Lumex Opto/Components Inc. | ||||||||||||
Lumex Opto/Components Inc. | 80 °C | -30 ░C | White | 3.3 V | 40 mA | PCB Pins | Rectangular | 3 mm | 14.78 mm | 23.97 mm |
