200989 Series

Slim-Grid Header, 18 Circuits, Surface Mount, Vertical, Shrouded, 0.38µm Gold (Au) Plated, with Pick-and-Place Cap, Tube, Lead-Free

Manufacturer: Molex

Catalog

Slim-Grid Header, 18 Circuits, Surface Mount, Vertical, Shrouded, 0.38µm Gold (Au) Plated, with Pick-and-Place Cap, Tube, Lead-Free

Part	Connector Type	Insulation Height	Insulation Height	Contact Finish - Mating	Mounting Type	Contact Type	Contact Finish - Post	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Insulation Color	Features	Applications	Number of Positions Loaded	Contact Shape	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Voltage Rating	Contact Material	Pitch - Mating	Pitch - Mating	Number of Positions
Molex 2009891106	Header	0.28 in	7.1 mm	Gold	Surface Mount	Male Pin	Tin	Solder	2 çm	78.7 çin	105 ░C	-55 °C	2	Black	Pick and Place	Automotive General Purpose Telecommunications	All	Square	Latch Holder	15 µin	0.38 µm	UL94 V-0	6	0.05 in	1.27 mm	Shrouded - 4 Wall	125 VDC	Copper Alloy	0.05 in	1.27 mm
Molex 2009891014	Header	0.28 in	7.1 mm	Gold	Surface Mount	Male Pin	Tin	Solder	2 çm	78.7 çin	105 ░C	-55 °C	2	Black	Pick and Place	Automotive General Purpose Telecommunications	All	Square	Latch Holder	2 µin	0.051 µm	UL94 V-0	14	0.05 in	1.27 mm	Shrouded - 4 Wall	125 VDC	Copper Alloy	0.05 in	1.27 mm
Molex 2009891206	Header	0.28 in	7.1 mm	Gold	Surface Mount	Male Pin	Tin	Solder	2 çm	78.7 çin	105 ░C	-55 °C	2	Black	Pick and Place	Automotive General Purpose Telecommunications	All	Square	Latch Holder	30 Áin	0.76 Ám	UL94 V-0	6	0.05 in	1.27 mm	Shrouded - 4 Wall	125 VDC	Copper Alloy	0.05 in	1.27 mm
Molex 2009891208	Header	0.28 in	7.1 mm	Gold	Surface Mount	Male Pin	Tin	Solder	2 çm	78.7 çin	105 ░C	-55 °C	2	Black	Pick and Place	Automotive General Purpose Telecommunications	All	Square	Latch Holder	30 Áin	0.76 Ám	UL94 V-0	8	0.05 in	1.27 mm	Shrouded - 4 Wall	125 VDC	Copper Alloy	0.05 in	1.27 mm
Molex 2009890014	Header	0.28 in	7.1 mm	Gold	Surface Mount	Male Pin	Tin	Solder	2 çm	78.7 çin	105 ░C	-55 °C	2	Black		Automotive General Purpose Telecommunications	All	Square	Latch Holder	2 µin	0.051 µm	UL94 V-0	14	0.05 in	1.27 mm	Shrouded - 4 Wall	125 VDC	Copper Alloy	0.05 in	1.27 mm

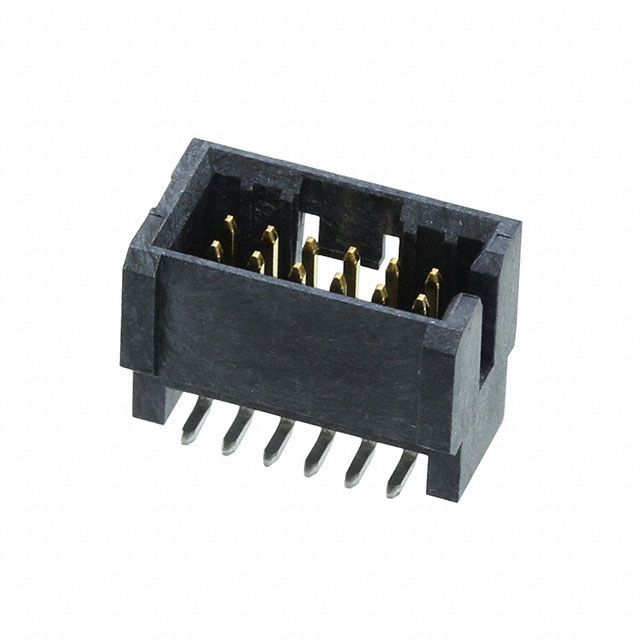

Molex 2009891112	Header	0.28 in	7.1 mm	Gold	Surface Mount	Male Pin	Tin	Solder	2 çm	78.7 çin	105 ░C	-55 °C	2	Black	Pick and Place	Automotive General Purpose Telecommunications	All	Square	Latch Holder	15 µin	0.38 µm	UL94 V-0	12	0.05 in	1.27 mm	Shrouded - 4 Wall	125 VDC	Copper Alloy	0.05 in	1.27 mm
Molex 2009890016	Header	0.28 in	7.1 mm	Gold	Surface Mount	Male Pin	Tin	Solder	2 çm	78.7 çin	105 ░C	-55 °C	2	Black		Automotive General Purpose Telecommunications	All	Square	Latch Holder	2 µin	0.051 µm	UL94 V-0		0.05 in	1.27 mm	Shrouded - 4 Wall	125 VDC	Copper Alloy	0.05 in	1.27 mm	16
Molex 2009890006	Header	0.28 in	7.1 mm	Gold	Surface Mount	Male Pin	Tin	Solder	2 çm	78.7 çin	105 ░C	-55 °C	2	Black		Automotive General Purpose Telecommunications	All	Square	Latch Holder	2 µin	0.051 µm	UL94 V-0	6	0.05 in	1.27 mm	Shrouded - 4 Wall	125 VDC	Copper Alloy	0.05 in	1.27 mm

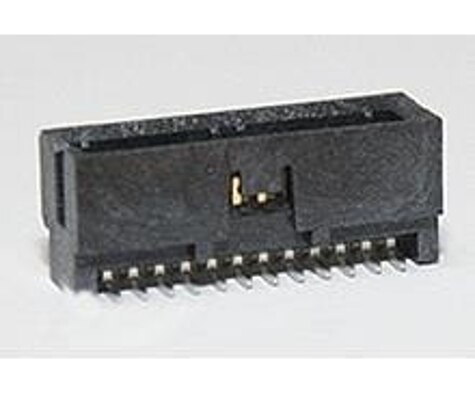

Molex 2009890004	Header	0.28 in	7.1 mm	Gold	Surface Mount	Male Pin	Tin	Solder	2 çm	78.7 çin	105 ░C	-55 °C	2	Black		Automotive General Purpose Telecommunications	All	Square	Latch Holder	2 µin	0.051 µm	UL94 V-0	4	0.05 in	1.27 mm	Shrouded - 4 Wall	125 VDC	Copper Alloy	0.05 in	1.27 mm
Molex 2009891110	Header	0.28 in	7.1 mm	Gold	Surface Mount	Male Pin	Tin	Solder	2 çm	78.7 çin	105 ░C	-55 °C	2	Black	Pick and Place	Automotive General Purpose Telecommunications	All	Square	Latch Holder	15 µin	0.38 µm	UL94 V-0	10	0.05 in	1.27 mm	Shrouded - 4 Wall	125 VDC	Copper Alloy	0.05 in	1.27 mm
