MEC1-140 Series

Catalog

CONN EDGE DUAL FMALE 80POS 0.039

Part	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Contact Material	Card Thickness	Card Thickness	Material - Insulation	Card Type	Contact Finish	Contact Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Positions	Termination	Mounting Type	Pitch [x]	Pitch [x]	Gender	Features
Samtec Inc. MEC1-140-02-F-D-RA1-SL	-55 °C	125 °C	Dual	Phosphor Bronze	0.062 in	1.57 mm	Liquid Crystal Polymer (LCP)	Non Specified - Dual Edge	Gold	Loop Bellows	2	3 Áin	0.076 Ám	Black	80	Solder	Surface Mount Right Angle	0.039 in	1 mm	Female
Samtec Inc. MEC1-140-02-S-D	-55 °C	125 °C	Dual	Beryllium Copper	0.062 in	1.57 mm	Liquid Crystal Polymer (LCP)	Non Specified - Dual Edge	Gold	Loop Bellows	2	30 Áin	0.76 Ám	Black	80	Solder	Surface Mount	0.039 in	1 mm	Female
Samtec Inc. MEC1-140-02-F-D-A-K-TR	-55 °C	125 °C	Dual	Beryllium Copper	0.062 in	1.57 mm	Liquid Crystal Polymer (LCP)	Non Specified - Dual Edge	Gold	Loop Bellows	2	3 Áin	0.076 Ám	Black	80	Solder	Surface Mount	0.039 in	1 mm	Female	Board Guide Pick and Place
Samtec Inc. MEC1-140-02-S-D-RA1-SL-TR	-55 °C	125 °C	Dual	Phosphor Bronze	0.062 in	1.57 mm	Liquid Crystal Polymer (LCP)	Non Specified - Dual Edge	Gold	Loop Bellows	2	30 Áin	0.76 Ám	Black	80	Solder	Surface Mount Right Angle	0.039 in	1 mm	Female

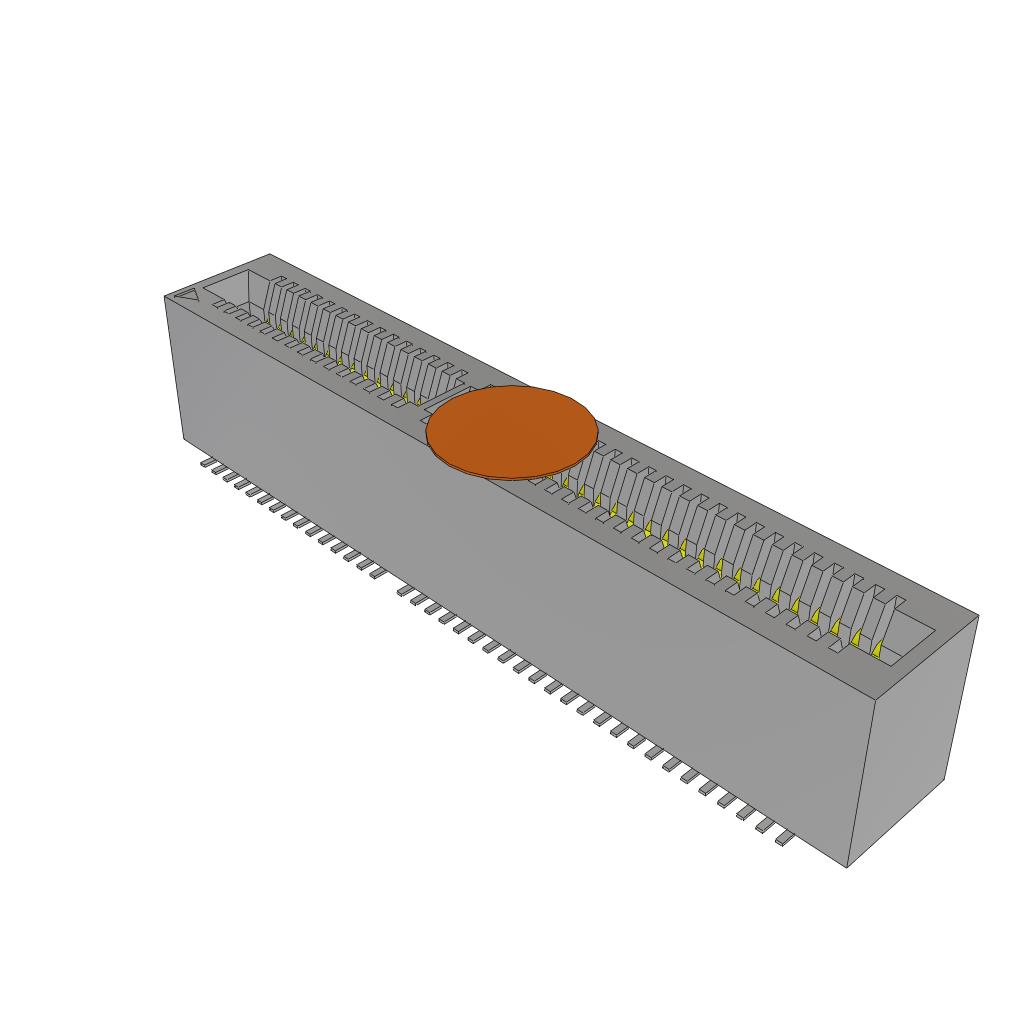

Samtec Inc. MEC1-140-02-F-D-K	-55 °C	125 °C	Dual	Beryllium Copper	0.062 in	1.57 mm	Liquid Crystal Polymer (LCP)	Non Specified - Dual Edge	Gold	Loop Bellows	2	3 Áin	0.076 Ám	Black	80	Solder	Surface Mount	0.039 in	1 mm	Female	Pick and Place
Samtec Inc. MEC1-140-02-FM-D-K-TR	-55 °C	125 °C	Dual	Beryllium Copper	0.062 in	1.57 mm	Liquid Crystal Polymer (LCP)	Non Specified - Dual Edge	Gold	Loop Bellows	2	3 Áin	0.076 Ám	Black	80	Solder	Surface Mount	0.039 in	1 mm	Female	Pick and Place

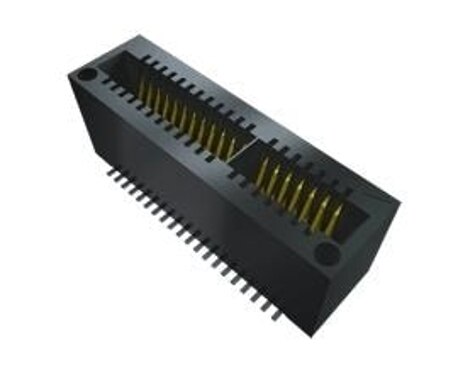

Samtec Inc. MEC1-140-02-L-D-A	-55 °C	125 °C	Dual	Phosphor Bronze	0.062 in	1.57 mm	Liquid Crystal Polymer (LCP)	Non Specified - Dual Edge	Gold	Loop Bellows	2	10 Áin	0.25 Ám	Black	80	Solder	Surface Mount	0.039 in	1 mm	Female	Board Guide
Samtec Inc. MEC1-140-02-L-D-RA1-A-SL	-55 °C	125 °C	Dual	Phosphor Bronze	0.062 in	1.57 mm	Liquid Crystal Polymer (LCP)	Non Specified - Dual Edge	Gold	Loop Bellows	2	10 Áin	0.25 Ám	Black	80	Solder	Surface Mount Right Angle	0.039 in	1 mm	Female	Board Guide
Samtec Inc. MEC1-140-02-F-D-RA2-SL	-55 °C	125 °C	Dual	Phosphor Bronze	0.062 in	1.57 mm	Liquid Crystal Polymer (LCP)	Non Specified - Dual Edge	Gold	Loop Bellows	2	3 Áin	0.076 Ám	Black	80	Solder	Surface Mount Right Angle	0.039 in	1 mm	Female
Samtec Inc. MEC1-140-02-L-D-TR	-55 °C	125 °C	Dual	Beryllium Copper	0.062 in	1.57 mm	Liquid Crystal Polymer (LCP)	Non Specified - Dual Edge	Gold	Loop Bellows	2	10 Áin	0.25 Ám	Black	80	Solder	Surface Mount	0.039 in	1 mm	Female
