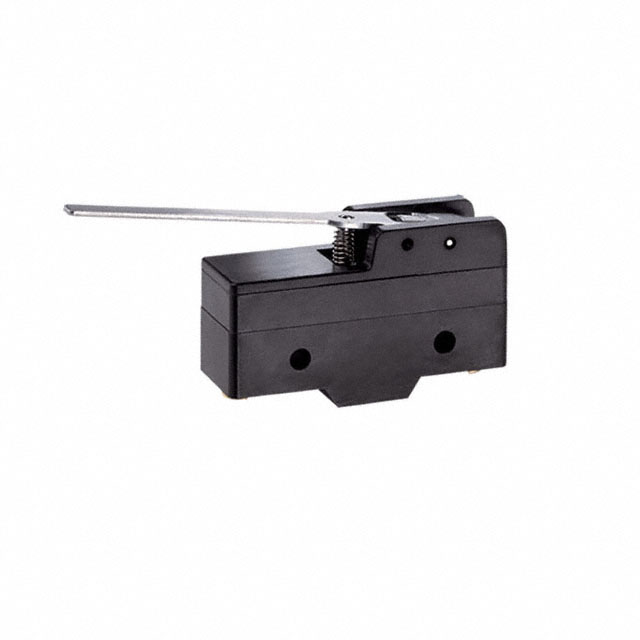

SWITCH SNAP ACTION SPDT 20A 125V
| Part | Voltage Rating - AC | Operating Position | Operating Position | Operating Force | Circuit | Switch Function | Mounting Type | Release Force | Actuator Type | Termination Style | Mechanical Life | Pretravel | Pretravel | Differential Travel | Differential Travel | Overtravel [custom] | Overtravel [custom] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ZF Electronics | 125 V | 18.2 mm | 0.715 " | 79 gf | SPDT | On-Mom | Chassis Mount | 14 gf | Lever Straight | Screw Terminal | 20000000 Cycles | 10 mm | 0.394 in | 0.05 in | 1.3 mm | 5.6 mm | 0.219 " | 20 A |
