MPM3620 Series

Manufacturer: Monolithic Power Systems Inc.

Catalog

EVAL BOARD FOR MPM3620A

Part	Outputs and Type	Outputs and Type	Supplied Contents	Board Type	Utilized IC / Part	Contents	Voltage - Input	Regulator Topology	Current - Output	Main Purpose	Frequency - Switching	Voltage - Output	Current - Output (Max) [Max]	Package / Case	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input (Max) [Max]	Supplier Device Package	Voltage - Input (Min) [Min]	Type	Control Features	Features	Applications	Number of Outputs	Mounting Type	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1 [Max]

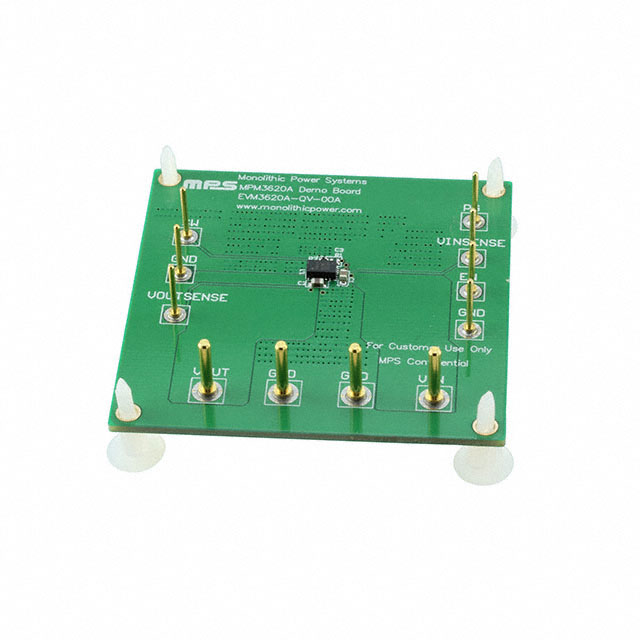

Monolithic Power Systems Inc. EVM3620A-QV-00A	1	1 Non-Isolated Output Non-Isolated	Board(s)	Fully Populated	MPM3620A	Board(s)	12 VDC	Buck	2 A	DC/DC Step Down	2 MHz	3.3 V
Monolithic Power Systems Inc. MPM3620AGQV-Z													2 A	20-PowerLFQFN Module	0.06 "	0.12 in	3 mm	5 mm	0.2 in	1.6 mm	24 V	20-QFN (3x5)	4.5 V	Non-Isolated PoL Module	Active High Enable	OCP OTP UVLO	ITE (Commercial)	1	Surface Mount	19.9 V	0.8 V	125 °C	-40 C
Monolithic Power Systems Inc. MPM3620GQV-Z													2 A	20-PowerLFQFN Module	0.06 "	0.12 in	3 mm	5 mm	0.2 in	1.6 mm	24 V	20-QFN (3x5)	4.5 V	Non-Isolated PoL Module	Active High Enable	OCP OTP UVLO	ITE (Commercial)	1	Surface Mount		0.8 V	125 °C	-40 C	18.48 V
Monolithic Power Systems Inc. MPM3620GQV-P													2 A	20-PowerLFQFN Module	0.06 "	0.12 in	3 mm	5 mm	0.2 in	1.6 mm	24 V	20-QFN (3x5)	4.5 V	Non-Isolated PoL Module	Active High Enable	OCP OTP UVLO	ITE (Commercial)	1	Surface Mount		0.8 V	125 °C	-40 C	18.48 V
Monolithic Power Systems Inc. MPM3620AGQV-P													2 A	20-PowerLFQFN Module	0.06 "	0.12 in	3 mm	5 mm	0.2 in	1.6 mm	24 V	20-QFN (3x5)	4.5 V	Non-Isolated PoL Module	Active High Enable	OCP OTP UVLO	ITE (Commercial)	1	Surface Mount	19.9 V	0.8 V	125 °C	-40 C
