AAA3MP Series

Catalog

AAA SERIES, 3 CONTACTS, MALE, PLASTIC HANDLE, NICKEL FINISH, SILVER CONTACT PLATING, 0.135"[3.4MM] CABLE STRAIN RELIEF SIZE, SEA

Part	Shell Material	Insert Material	Features	Mounting Type	Shielding	Ingress Protection	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Primary Material	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Orientation	Color	Shell Finish	Shell Size - Insert	Backshell Material, Plating	Connector Type	Contact Finish - Mating	Contact Material	Backshell Material, Plating [custom]	Backshell Material, Plating [custom]	Voltage Rating	Current Rating (Amps)
SWITCHCRAFT/CONXALL AAA3MPZH	Zinc Alloy	Thermoplastic	Backshell Cable Clamp Ground Strain Relief	Free Hanging (In-Line)	Shielded	IP66 - Dust Tight Water Resistant	Audio Instrumentation	-40 C	65 °C	Latch Lock	Metal	0.15 "	7.24 mm	0.285 in	3.81 mm	Keyed	Silver	Nickel	XLR	Nickel Zinc Alloy	Receptacle Male Pins	Silver	Copper Alloy

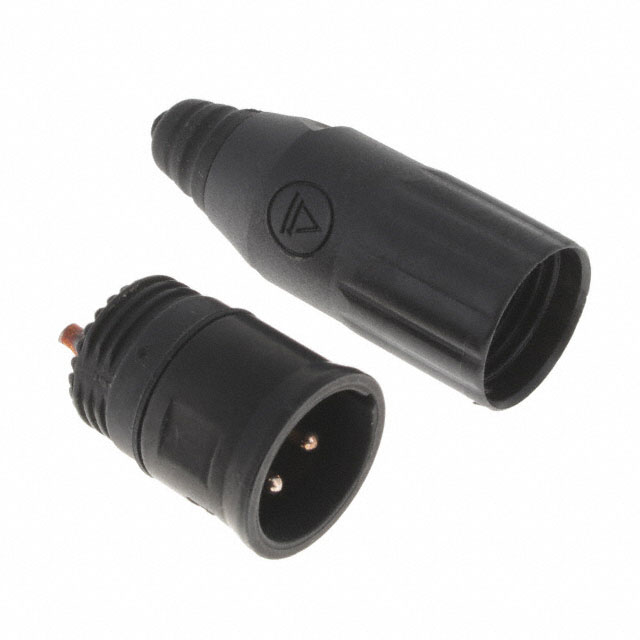

SWITCHCRAFT/CONXALL AAA3MPBZH	Zinc Alloy	Thermoplastic	Backshell Cable Clamp Ground Strain Relief	Free Hanging (In-Line)	Shielded	IP66 - Dust Tight Water Resistant	Audio Instrumentation	-40 C	65 °C	Latch Lock	Metal	0.15 "	7.24 mm	0.285 in	3.81 mm	Keyed	Black	Chrome	XLR		Receptacle Male Pins	Silver	Copper Alloy	Chrome	Zinc
SWITCHCRAFT/CONXALL AAA3MPBAUZH	Zinc Alloy	Thermoplastic	Backshell Cable Clamp Ground Strain Relief	Free Hanging (In-Line)	Shielded	IP66 - Dust Tight Water Resistant	Audio Instrumentation	-40 C	65 °C	Latch Lock	Metal	0.15 "	7.24 mm	0.285 in	3.81 mm	Keyed	Black	Chrome	XLR		Receptacle Male Pins	Gold	Copper Alloy	Chrome	Zinc
SWITCHCRAFT/CONXALL AAA3MPBZ	Zinc Alloy	Thermoplastic	Backshell Cable Clamp Ground Strain Relief	Free Hanging (In-Line)	Shielded		Audio Industrial Instrumentation Medical			Latch Lock	Metal	0.1 "	5.59 mm	0.22 in	2.54 mm	Keyed	Black	Chrome	XLR		Receptacle Male Pins	Silver	Copper Alloy	Chrome	Zinc	125 VAC	15 A
