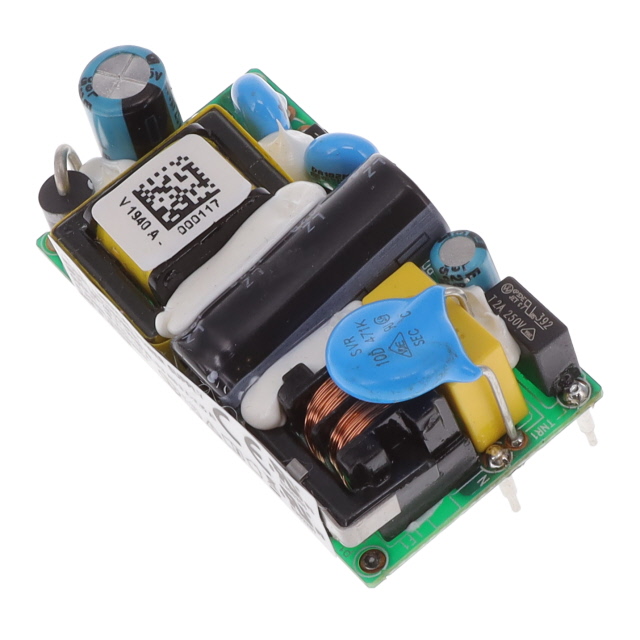

GB10S09 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K
AC/DC CONVERTER 9V 9W
| Part | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Voltage - Isolation | Type | Voltage - Input [Max] | Voltage - Input [Min] | Mounting Type | Applications | Features | Standard Number | Efficiency | Number of Outputs | Voltage - Output 1 | Current - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Approval Agency | Minimum Load Required |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | 2.05 in | 52 mm | 1.07 in | 27.3 mm | 18 mm | 0.71 in | 4000 V | Open Frame | 264 VAC | 90 VAC | Chassis Mount | ITE (Commercial) Medical | Universal Input | 60601-1; 62368-1 | 88 % | 1 | 9 V | 1 A | 70 °C | -25 °C | 9 W | CE cURus DEMKO | |
 SL POWER / Advanced Energy | 3.38 in | 85.9 mm | 1.6 in | 40.6 mm | 25.4 mm | 1 in | 4000 V | Open Frame | 240 VAC | 100 VAC | Chassis Mount | ITE (Commercial) Medical | Universal Input | 88 % | 1 | 9 V | 1.1 A | 70 °C | -25 °C | 10 W | CE cURus UL |
