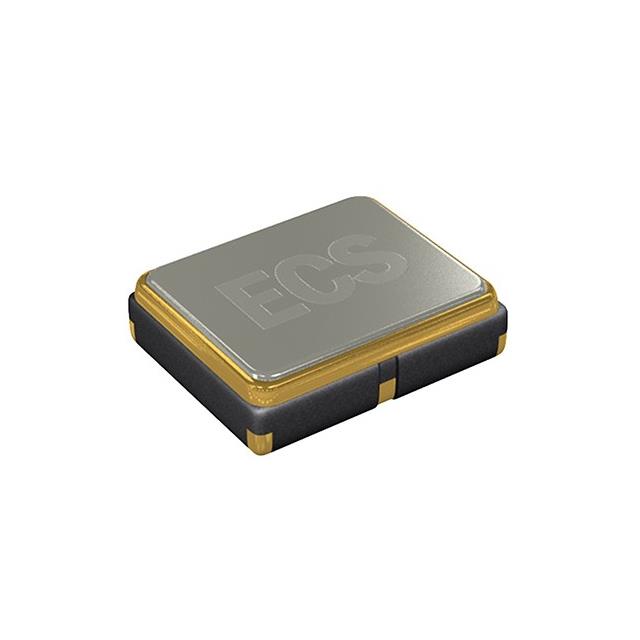

ECS-2520MV Series

Manufacturer: ECS Inc.

Catalog

STANDARD CLOCK OSCILLATORS 100.000 MHZ MULTI-VOLT 1.6 3.6 V +/-50PPM -40 85C 4-SMD 2.5 X 2.0 MM ROHS

Part	Current - Supply (Max) [Max]	Type	Package / Case	Function	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Base Resonator [custom]	Output	Frequency	Frequency Stability
ECS Inc. ECS-2520MV-1000-BN-TR	40 mA	XO (Standard)	4-SMD No Lead	Enable/Disable	0.035 in	0.9 mm	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	85 °C	-40 C	3.6 V	1.6 V	2	2.5	4-SMD	Crystal	HCMOS	100 MHz	50 ppm
ECS Inc. ECS-2520MV-200-CN-TR	7 mA	XO (Standard)	4-SMD No Lead	Enable/Disable	0.035 in	0.9 mm	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	85 °C	-40 C	3.6 V	1.6 V	2	2.5	4-SMD	Crystal	HCMOS	20 MHz	25 ppm
ECS Inc. ECS-2520MV-500-CM-TR	8 mA	XO (Standard)	4-SMD No Lead	Enable/Disable	0.035 in	0.9 mm	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	70 °C	-20 ░C	3.6 V	1.6 V	2	2.5	4-SMD	Crystal	HCMOS	50 MHz	25 ppm
