MEAS 55000 Series

Catalog

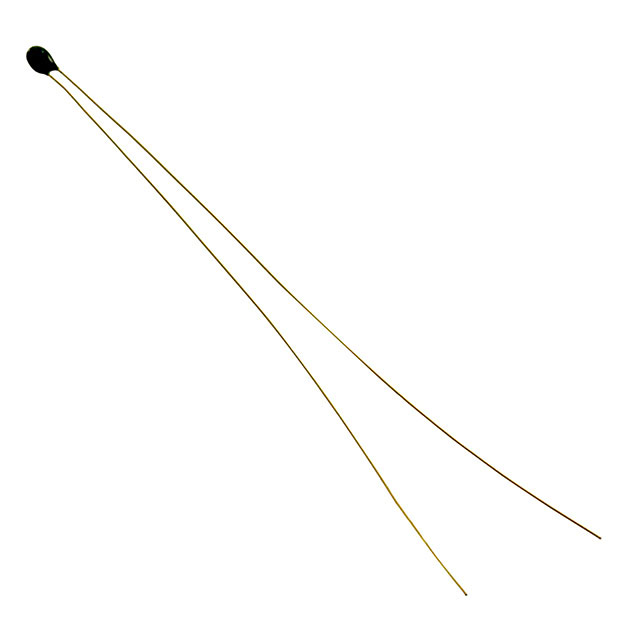

55036-BP GEM THERM

Part	Resistance in Ohms @ 25°C	Operating Temperature [Min]	Operating Temperature [Max]	B Value Tolerance	B25/85	Package / Case	Mounting Type	Length - Lead Wire	Length - Lead Wire [x]	Resistance in Ohms @ 25°C	Resistance Tolerance
TE Connectivity AMP Connectors 055314	10k	-55 C	150 °C	0.4 %	3978 K
TE Connectivity AMP Connectors 055307	10k	-55 C	150 °C	0.8 %	3943 K	Bead Glass	Free Hanging	65 mm	2.56 "
TE Connectivity AMP Connectors 055311		-55 C	150 °C	0.4 %	3943 K					30 kOhms
TE Connectivity AMP Connectors 055303	10k	-55 C	150 °C	0.8 %	3694 K	Bead Glass	Free Hanging	65 mm	2.56 "
TE Connectivity AMP Connectors 055111		-40 C	150 °C	0.4 %	3943 K	Bead	Free Hanging			30 kOhms	0.1 °C
TE Connectivity AMP Connectors 055107	10k	-55 C	150 °C	0.8 %	3978 K	Bead	Free Hanging
TE Connectivity AMP Connectors 055310	10k	-55 C	150 °C	0.4 %	3694 K
TE Connectivity AMP Connectors 055113	5k	-55 C	150 °C	0.4 %	3978 K	Bead Glass	Free Hanging	65 mm	2.56 "
TE Connectivity AMP Connectors 055102	3k	-55 C	150 °C	0.8 %	3978 K	Bead Glass	Free Hanging	65 mm	2.56 "
TE Connectivity AMP Connectors 055304	5k	-55 C	150 °C	0.8 %	3978 K
