EXP-A911 Series

Catalog

CONN PLUG FMALE 7P NICKEL SCREW

Part	Mounting Type	Ingress Protection	Backshell Material, Plating	Fastening Type	Orientation	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Features	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Applications	Current Rating (Amps)	Shell Material	Number of Positions	Material Flammability Rating	Termination	Contact Finish - Mating	Contact Material	Color	Connector Type	Primary Material

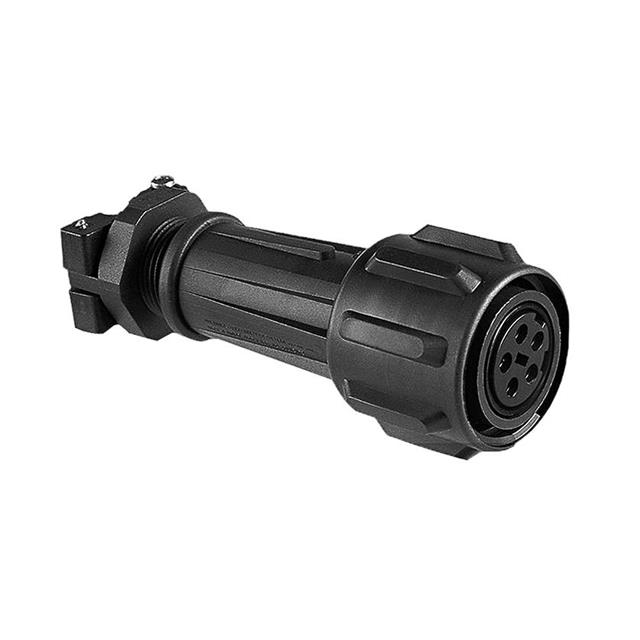

BULGIN LIMITED EXP-A911/07/S	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	Polyester	Threaded	Keyed	20 mm	0.866 in	22 mm	0.787 in	Backshell Cable Clamp Coupling Nut UV Resistant	430 VAC/DC	55 °C	-20 ░C	Unshielded	Industrial	16 A	Polyester	7	UL94 V-0	Screw	Nickel	Brass	Black	Plug Female Sockets	Plastic
BULGIN LIMITED EXP-A911/04/S	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	Polyester	Threaded	Keyed	20 mm	0.866 in	22 mm	0.787 in	Backshell Cable Clamp Coupling Nut UV Resistant	600 VAC	55 °C	-20 ░C	Unshielded	Industrial	18 A	Polyester	4	UL94 V-0	Screw	Nickel	Brass	Black	Plug Female Sockets	Plastic
BULGIN LIMITED EXP-A911/02/S	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	Polyester	Threaded	Keyed	20 mm	0.866 in	22 mm	0.787 in	Backshell Cable Clamp Coupling Nut UV Resistant	600 VAC	55 °C	-20 ░C	Unshielded	Industrial	18 A	Polyester	2	UL94 V-0	Screw	Nickel	Brass	Black	Plug Female Sockets	Plastic
BULGIN LIMITED EXP-A911/05/P	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	Polyester	Threaded	Keyed	20 mm	0.866 in	22 mm	0.787 in	Backshell Cable Clamp Coupling Nut Trailing Neutral UV Resistant	600 VAC	55 °C	-20 ░C	Unshielded	Industrial	18 A	Polyester	5	UL94 V-0	Screw	Nickel	Brass	Black	Plug Male Pins	Plastic
