DX07P024 Series
Manufacturer: JAE Electronics
Beta
⌘K

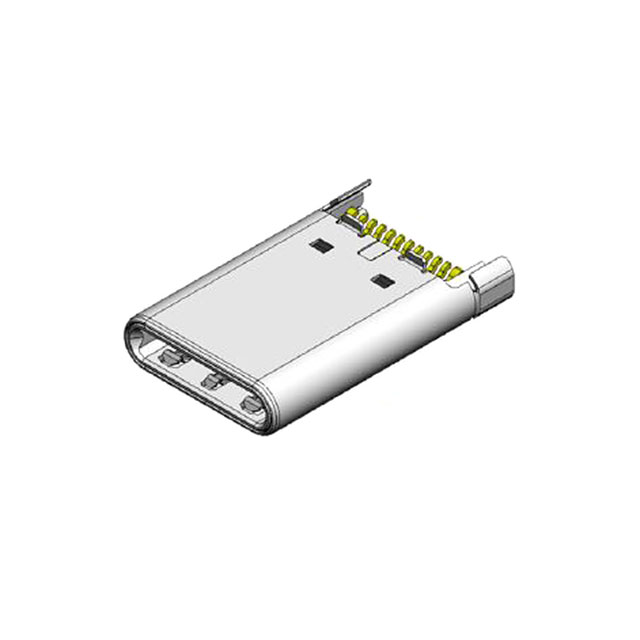

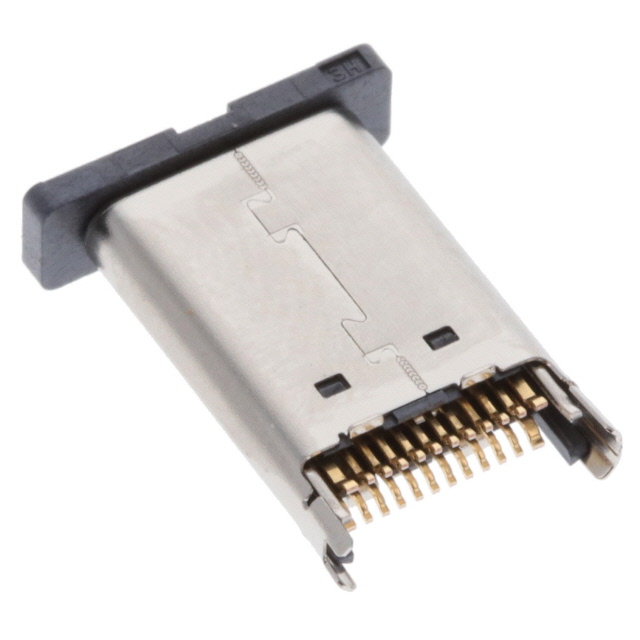

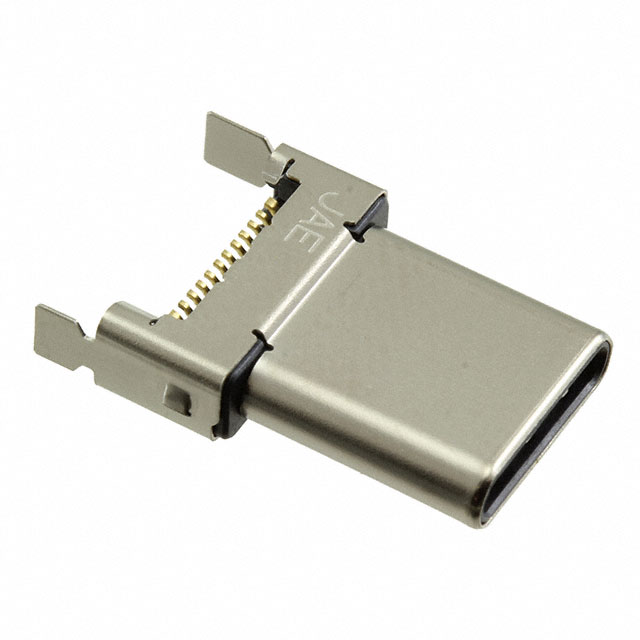

CONN PLUG USB3.1 TYPEC BRD EDGE
| Part | Shell/Shielding Material | Insulation Color | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Number of Ports | Number of Contacts [custom] | Features | Connector Type | Termination | Mounting Feature | Current Rating (Amps) | Mating Cycles | Shielding | Gender | Specifications | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Stainless Steel | Black | Gold | 80 °C | -30 ░C | Board Edge Straddle Mount | 1 | 24 | Cover | USB-C (USB TYPE-C) | Solder | Reversible | 0.25 A 1.25 A | 10000 | Shielded | Plug | USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1)) | 20 VAC |
 JAE Electronics | Stainless Steel | Black | Gold | 80 °C | -30 ░C | Board Edge Straddle Mount | 1 | 24 | Cover | USB-C (USB TYPE-C) | Solder | Reversible | 0.25 A 1.25 A | 10000 | Shielded | Plug | USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1)) | 20 VAC |
 JAE Electronics | Stainless Steel | Black | Gold | 80 °C | -30 ░C | Board Edge Straddle Mount | 1 | 24 | Cover | USB-C (USB TYPE-C) | Solder | Reversible | 0.25 A 1.25 A | 10000 | Shielded | Plug | USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1)) | 48 VDC |
