M22-220 Series
Manufacturer: Harwin Inc.
Beta
⌘K

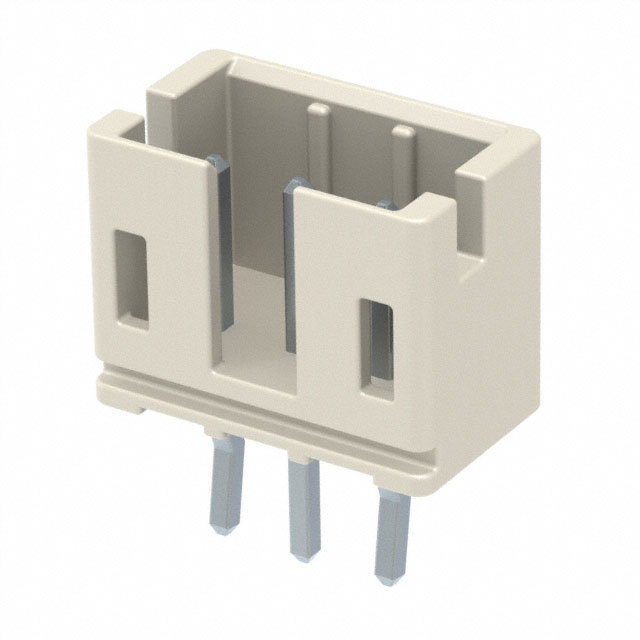

CONN HEADER VERT 3POS 2MM
| Part | Mated Stacking Heights | Voltage Rating | Current Rating (Amps) | Connector Type | Fastening Type | Pitch - Mating | Pitch - Mating | Insulation Height [z] | Insulation Height [z] | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Color | Number of Rows | Shrouding | Contact Type | Contact Length - Post [x] | Contact Length - Post | Style | Insulation Material | Contact Finish - Post | Mounting Type | Termination | Number of Positions Loaded | Contact Shape | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 8.05 mm | 100 V | 2 A | Header | Detent Lock | 0.079 " | 2 mm | 6.1 mm | 0.24 in | Brass | 85 °C | -25 °C | Natural | 1 | Shrouded - 4 Wall | Male Pin | 0.134 " | 3.4 mm | Board to Cable/Wire | Nylon 9T Polyamide (PA9T) | Tin | Through Hole | Kinked Pin Solder | All | Square | UL94 V-0 |
