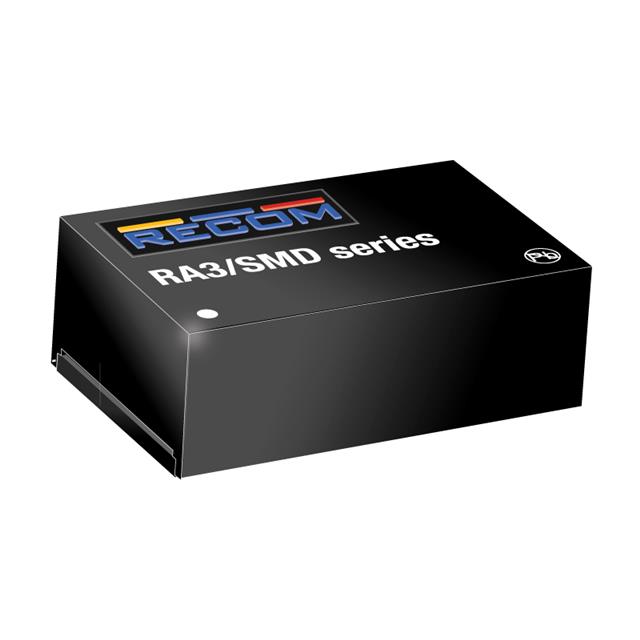

RA3 Series

Catalog

ISOLATED DC/DC CONVERTERS - SMD 3W 24VIN +7/-1VOUT +420/-100MA

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Applications	Power (Watts)	Voltage - Output 2	Package / Case	Efficiency	Voltage - Isolation	Voltage - Output 1	Type	Mounting Type	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Current - Output (Max)
Recom Power RA3-240701D/SMD-R	85 °C	-40 C	26.4 V	2	15 mm	0.33 in	0.59 in	0.92 "	23.4 mm	8.5 mm	ITE (Commercial)	3 W	1 V	16-SMD Module 6 Leads	80 %	5.2 kV	7 V	Isolated Module	Surface Mount	21.6 V
Recom Power RA3-0508S/SMD-R	85 °C	-40 C	5.5 V	1	15 mm	0.33 in	0.59 in	0.92 "	23.4 mm	8.5 mm	ITE (Commercial)	3 W		16-SMD Module 6 Leads	81 %	5.2 kV	8 V	Isolated Module	Surface Mount	4.5 V	375 mA
Recom Power RA3-2408S/SMD	85 °C	-40 C	26.4 V	1	15 mm	0.33 in	0.59 in	0.92 "	23.4 mm	8.5 mm	ITE (Commercial)	3 W		16-SMD Module 6 Leads		5.2 kV	8 V	Isolated Module	Surface Mount	21.6 V	375 mA
Recom Power RA3-121503D/SMD	85 °C	-40 C	13.2 V	2	15 mm	0.33 in	0.59 in	0.92 "	23.4 mm	8.5 mm	ITE (Commercial)	3 W	3 V	16-SMD Module 6 Leads	79 %	5.2 kV	15 V	Isolated Module	Surface Mount	10.8 V		100 mA 500 mA
Recom Power RA3-120701D/SMD-R	85 °C	-40 C	13.2 V	2	15 mm	0.33 in	0.59 in	0.92 "	23.4 mm	8.5 mm	ITE (Commercial)	3 W	1 V	16-SMD Module 6 Leads		5.2 kV	7 V	Isolated Module	Surface Mount	10.8 V
