3385 Series

Catalog

HEADER CONNECTOR,CABLE MOUNT,PLUG,14 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL ROHS COMPLIANT: YES

Part	Row Spacing	Row Spacing	Contact Finish	Features	Wire Type	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Connector Type	Mounting Type	Number of Positions	Cable Termination	Pitch	Pitch	Color	Wire Gauge [Max]	Wire Gauge	Wire Gauge [Min]
3M Electronic Specialty 3385-7014	2.54 mm	0.1 "	Gold	Closed End Strain Relief	Ribbon Cable	Female Socket	30 Áin	0.76 Ám	2	Receptacle	Free Hanging (In-Line)	14	IDC	0.1 "	2.54 mm	Gray

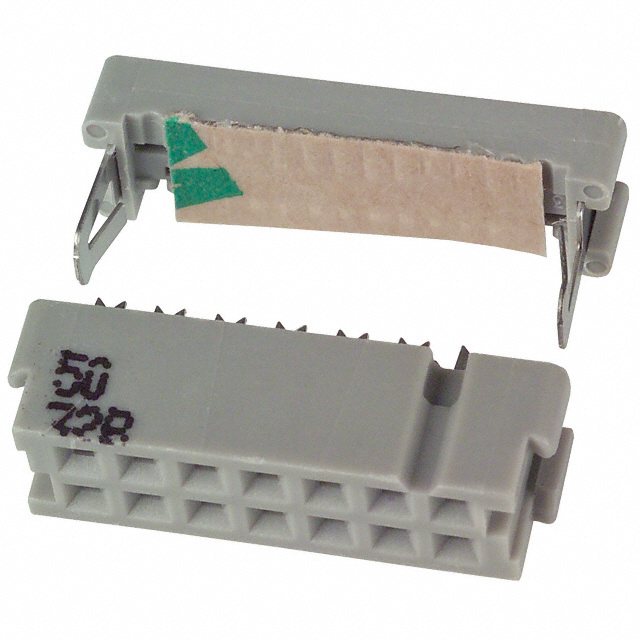

3M Electronic Specialty 3385-6000	2.54 mm	0.1 "	Gold	Feed Through	Ribbon Cable	Female Socket	30 Áin	0.76 Ám	2	Receptacle	Free Hanging (In-Line)	14	IDC	0.1 "	2.54 mm	Gray
3M Electronic Specialty 3385-H600	2.54 mm	0.1 "	Gold	Feed Through Polarizing Key	Ribbon Cable	Female Socket	30 Áin	0.76 Ám	2	Receptacle	Free Hanging (In-Line)	14	IDC	0.1 "	2.54 mm	Gray	28 AWG	Stranded or Solid	26 AWG
3M Electronic Specialty 3385-6014	2.54 mm	0.1 "	Gold	Feed Through Strain Relief	Ribbon Cable	Female Socket	30 Áin	0.76 Ám	2	Receptacle	Free Hanging (In-Line)	14	IDC	0.1 "	2.54 mm	Gray
3M Electronic Specialty 3385-7000	2.54 mm	0.1 "	Gold	Closed End	Ribbon Cable	Female Socket	30 Áin	0.76 Ám	2	Receptacle	Free Hanging (In-Line)	14	IDC	0.1 "	2.54 mm	Gray
3M Electronic Specialty 3385-6614	2.54 mm	0.1 "	Gold	Feed Through Polarizing Key Strain Relief	Ribbon Cable	Female Socket	30 Áin	0.76 Ám	2	Receptacle	Free Hanging (In-Line)	14	IDC	0.1 "	2.54 mm	Gray
3M Electronic Specialty 3385-7600	2.54 mm	0.1 "	Gold		Ribbon Cable	Female Socket	30 Áin	0.76 Ám	2	Receptacle	Free Hanging (In-Line)	14	IDC	0.1 "	2.54 mm	Gray
