5-6605704 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K

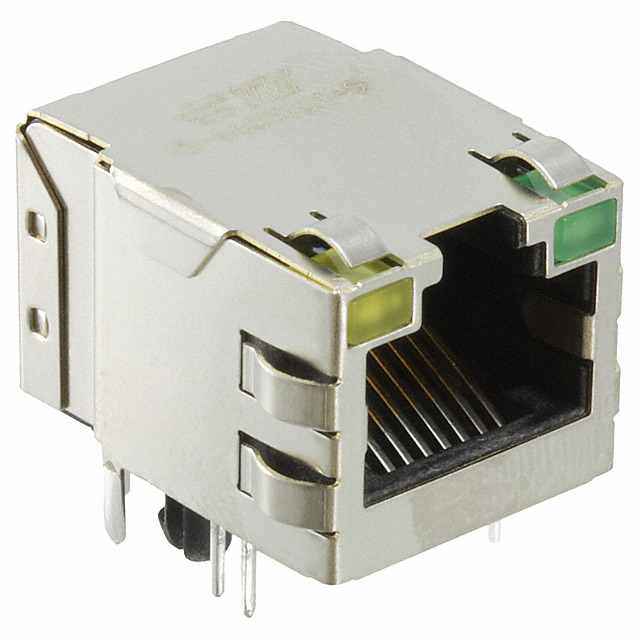

CONN JACK 1PORT 100 BASE-T
| Part | LED Color | Orientation | Connector Type | Number of Rows | Number of Ports | Height Above Board | Height Above Board | Contact Finish | Mounting Type | Termination | Features | Tab Direction | Number of Cores per Jack | Applications | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Housing Material | Contact Finish Thickness | Contact Finish Thickness | Shield Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | Yellow - Green | 90 ° | RJ45 | 1 | 1 | 0.555 " | 14.1 mm | Gold | Through Hole | Solder | Board Lock Decoupling Capacitance | Up | 6 | 10/100 Base-T AutoMDIX | Phosphor Bronze | 85 °C | -40 C | EMI Finger Shielded | ||||
Bel Fuse Inc. | Yellow - Green | 90 ° | RJ45 | 1 | 1 | 0.555 " | 14.1 mm | Gold | Through Hole | Solder | Board Lock Decoupling Capacitance | Up | 6 | 10/100 Base-T AutoMDIX | Phosphor Bronze | 85 °C | -40 C | EMI Finger Shielded | Polyester Polyethylene Terephthalate (PET) | 50 µin | 1.27 µm | Brass |
