70F Series

Catalog

26-20 AWG NYLON INSULATED W/INSULATION GRIP FEMALE DISCONNECT

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Tab Thickness	Tab Thickness	Termination	Tab Width	Tab Width	Insulation	Gender	Contact Finish	Length - Overall [x]	Length - Overall [x]	Contact Material	Features	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Type	Mounting Type

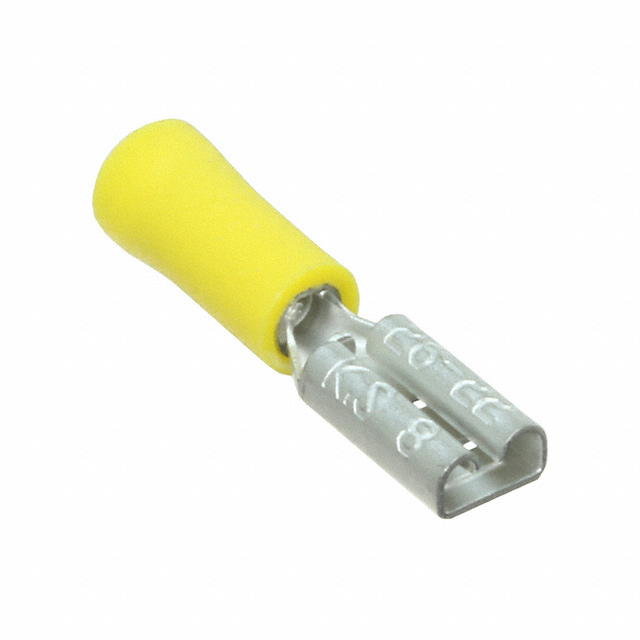

3M Electronic Specialty 70F-110-32-PB	1.91 mm	0.075 "	0.81 mm	0.032 in	Crimp	0.11 "	2.79 mm	Non-Mating End Insulated	Female	Tin	0.63 in	16 mm	Brass	Butted Seam	26 AWG	22 AWG	Standard	Free Hanging (In-Line)
3M Electronic Specialty 70F-110-20-PB	1.91 mm	0.075 "	0.51 mm	0.02 in	Crimp	0.11 "	2.79 mm	Non-Mating End Insulated	Female	Tin	0.63 in	16 mm	Brass	Butted Seam	26 AWG	22 AWG	Standard	Free Hanging (In-Line)
