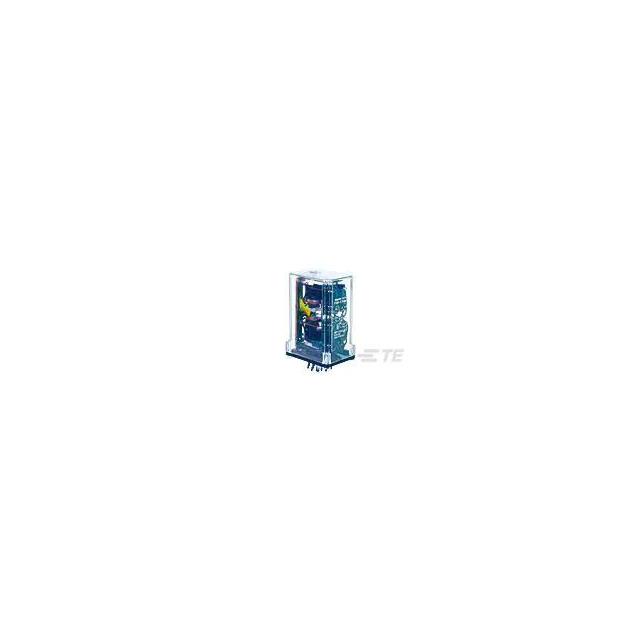

KB-17DG Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE 4PDT 10A 48V
| Part | Mounting Type | Switching Voltage [Max] | Coil Resistance | Coil Current | Must Operate Voltage | Contact Form | Relay Type | Contact Material | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Contact Rating (Current) | Coil Voltage | Switching Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Chassis Mount | 120 VAC | 850 Ohms | 56.5 mA | 36 VDC | 4PDT (4 Form C) | General Purpose | Silver Cadmium Oxide (AgCdO) | Solder Lug | 85 °C | -45 °C | Dual Coil Latching | 10 A | 48 VDC | |
 TE Connectivity AMP Connectors | Chassis Mount | 230 Ohms | 104 mA | 18 VDC | 4PDT (4 Form C) | General Purpose | Silver Cadmium Oxide (AgCdO) | Solder Lug | 85 °C | -45 °C | Dual Coil Latching | 10 A | 24 VDC | 120 VAC | |
TE Connectivity AMP Connectors | Chassis Mount | 850 Ohms | 56.5 mA | 36 VDC | 4PDT (4 Form C) | General Purpose | Silver Cadmium Oxide (AgCdO) | Solder Lug | 85 °C | -45 °C | Dual Coil Latching | 10 A | 48 VDC | 120 VAC | |
 TE Connectivity AMP Connectors | Chassis Mount | 52 Ohms | 230 mA | 9 VDC | 4PDT (4 Form C) | General Purpose | Silver Cadmium Oxide (AgCdO) | Solder Lug | 85 °C | -45 °C | Dual Coil Latching | 10 A | 12 VDC | 120 VAC |
