MEAS GCD Series

Catalog

SERIES PRECISION GAUGE HEADS

Part	Size / Dimension	Operating Temperature [Max]	Operating Temperature [Min]	Linear Range	Features	Size / Dimension [x]	Size / Dimension [diameter]
TE Connectivity AMP Connectors 02350511-000	111 mm	70 °C	0 °C	6.35 mm	High Reliability
TE Connectivity AMP Connectors 03350159-000
TE Connectivity AMP Connectors 04290589-000

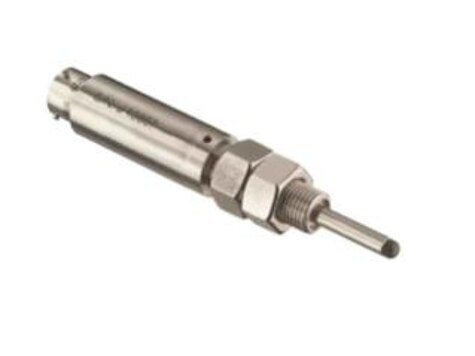

TE Connectivity AMP Connectors 02351006-000		85 °C	-25 °C	2.54 mm	Spring Loaded	103.1 mm
TE Connectivity AMP Connectors 02351008-000	146.3 mm	85 °C	-25 °C	12.7 mm	Spring Loaded
TE Connectivity AMP Connectors 02350510-000		70 °C	0 °C	3.17 mm			88.9 mm
TE Connectivity AMP Connectors 02350513-000
TE Connectivity AMP Connectors 02350512-000	153.9 mm	70 °C	0 °C	12.7 mm
TE Connectivity AMP Connectors 02351010-000	246.6 mm	85 °C	-25 °C	50.8 mm	Spring Loaded
