1CVx Series Series

IGBT for Inverter Applications

Manufacturer: Renesas Electronics Corporation

Catalog

IGBT for Inverter Applications

Part	Power - Max [Max]	Td (on/off) @ 25°C [custom]	Td (on/off) @ 25°C [custom]	Package / Case	Current - Collector (Ic) (Max) [Max]	IGBT Type	Mounting Type	Switching Energy	Voltage - Collector Emitter Breakdown (Max) [Max]	Supplier Device Package	Operating Temperature	Vce(on) (Max) @ Vge, Ic	Test Condition	Reverse Recovery Time (trr)	Gate Charge

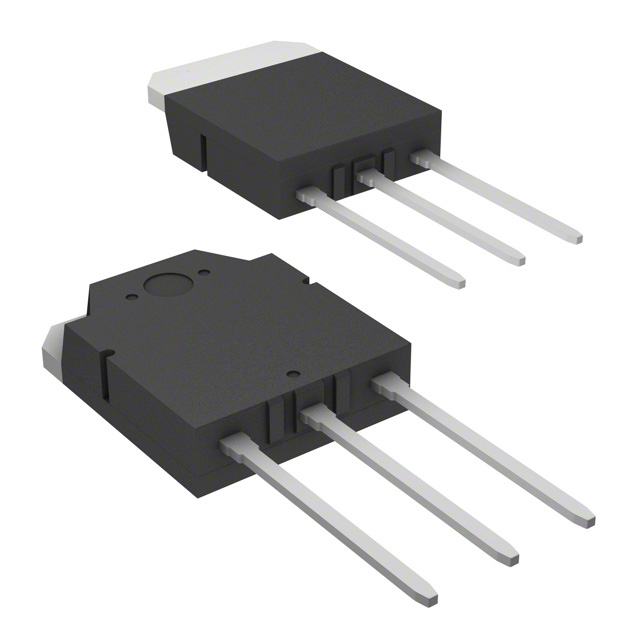

Renesas Electronics Corporation RJH1CV5DPK-00#T0	245 W	42 ns	105 ns	SC-65-3 TO-3P-3	50 A	Trench	Through Hole	1.5 mJ 1.9 mJ	1200 V	TO-3P	150 °C	2.6 V	5 Ohm 15 V 25 A 600 V	170 ns	72 nC

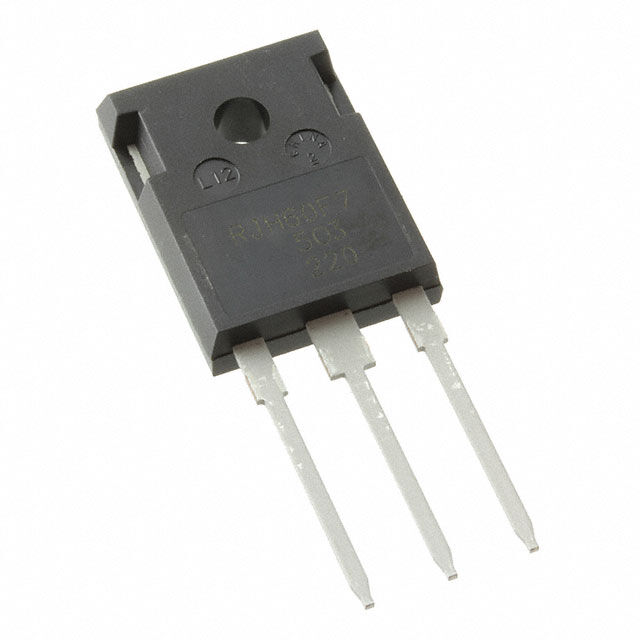

Renesas Electronics Corporation RJH1CV7DPQ-E0#T2	320 W	53 ns	185 ns	TO-247-3	70 A	Trench	Through Hole	2.5 mJ 3.2 mJ	1200 V	TO-247	150 °C	2.3 V	5 Ohm 15 V 35 A 600 V	200 ns	166 nC
Renesas Electronics Corporation RJH1CV6DPK-00#T0	290 W	46 ns	125 ns	SC-65-3 TO-3P-3	60 A	Trench	Through Hole	1.7 mJ 2.3 mJ	1200 V	TO-3P	150 °C	2.6 V	5 Ohm 15 V 30 A 600 V	180 ns	105 nC
Renesas Electronics Corporation RJH1CV7DPK-00#T0	320 W	53 ns	185 ns	SC-65-3 TO-3P-3	70 A	Trench	Through Hole	2.5 mJ 3.2 mJ	1200 V	TO-3P	150 °C	2.3 V	5 Ohm 15 V 35 A 600 V	200 ns	166 nC

Catalog

IGBT for Inverter Applications

Description

IGBT product series for inverter for UPS, motor control, solar power generation, and welding applications, recommended for 1 to 50 kHz frequencies, and guaranteed against short circuit.
