NCP565 Series

LDO Regulator, 1.5 A, High PSRR, with Fast Transient Resoponse

Catalog

LDO Regulator, 1.5 A, High PSRR, with Fast Transient Resoponse

Part	Mounting Type	Voltage - Output (Max) [Max]	Package / Case	Voltage - Input (Max) [Max]	Current - Quiescent (Iq)	Number of Regulators	Output Type	Output Configuration	Voltage - Output (Min/Fixed)	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Protection Features	Voltage Dropout (Max) [Max]	PSRR [Min]	PSRR [Max]	Current - Output	Output Type	Board Type	Channels per IC	Regulator Type	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output	Supplied Contents	Utilized IC / Part	Voltage - Input
ON Semiconductor NCP565MNADJT2G	Surface Mount	7.7 V	6-VDFN Exposed Pad	9 V	3 mA	1	Adjustable	Positive	0.9 V	125 °C	-40 °C	3.3	3	6-DFN	Over Current Over Temperature	1.3 V	85 dB	75 db	1.5 A
ON Semiconductor NCP565D2T12G	Surface Mount		D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	9 V	3 mA	1		Positive	1.2 V	125 °C	-40 °C			D2PAK-3	Over Current Over Temperature		85 dB	75 db	1.5 A	1.81 mOhm
ON Semiconductor NCP565MN33T2G	Surface Mount		6-VDFN Exposed Pad	9 V	3 mA	1		Positive	3.3 V	125 °C	-40 °C	3.3	3	6-DFN	Over Current Over Temperature		85 dB	75 db	1.5 A	1.81 mOhm
ON Semiconductor NCP565V12EVB																			1.5 A		Fully Populated	1 - Single	Positive Fixed	5.5 V	4.5 V	1.2 V	Board(s)	NCP565
ON Semiconductor NCP565MN30T2G	Surface Mount		6-VDFN Exposed Pad	9 V	3 mA	1		Positive		125 °C	-40 °C	3.3	3	6-DFN	Over Current Over Temperature		85 dB	75 db	1.5 A	1.81 mOhm
ON Semiconductor NCP565D2T33R4G	Surface Mount		D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	9 V	3 mA	1		Positive	3.3 V	125 °C	-40 °C			D2PAK-3	Over Current Over Temperature		85 dB	75 db	1.5 A	1.81 mOhm
ON Semiconductor NCP565ST12T3G	Surface Mount		TO-261-4 TO-261AA	9 V	3 mA	1		Positive	1.2 V	125 °C	-40 °C			SOT-223 (TO-261)	Over Current Over Temperature		85 dB	75 db	1.5 A	1.81 mOhm

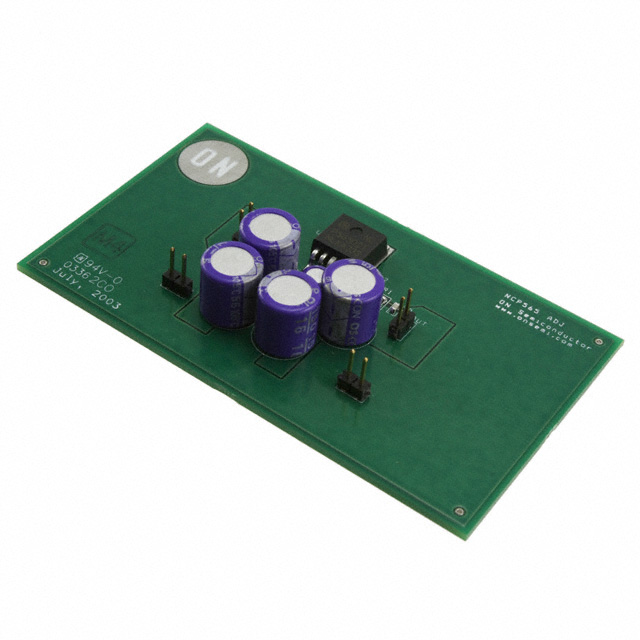

ON Semiconductor NCP565VADJEVB																			1.5 A		Fully Populated	1 - Single	Positive Fixed			3.3 V	Board(s)	NCP565	5 VDC
ON Semiconductor NCP565D2T33G	Surface Mount		D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	9 V	3 mA	1		Positive	3.3 V	125 °C	-40 °C			D2PAK-3	Over Current Over Temperature		85 dB	75 db	1.5 A	1.81 mOhm

Catalog

LDO Regulator, 1.5 A, High PSRR, with Fast Transient Resoponse

Key Features

• Ultra Fast Transient Response (<1.0us)

• Low Ground Current (1.5 mA at Iload = 1.5 A)

• Low Dropout Voltage (0.9V at Iload = 1.5 A)

• Low Noise (28 µVrms)

• 0.9 V Reference Voltage

• Adjustable Output Voltage from 7.7 V down to 0.9 V

• 1.2 V, 1.5 V, 2.8 V, 3.0 V, 3.3 V Fixed Output Versions. Other Fixed Voltages Available on Request

• Current Limit Protection (3.3 A Typ)

• Thermal Shutdown Protection (160°C)

• Pb-Free Packages are Available

Description

The NCP565/NCV565 low dropout (LDO) linear voltage regulator provides 1.5 A in either fixed voltage options or in an adjustable voltage version from 7.7 V down to 0.9 V. The fast loop response and low dropout voltage make this regulator ideal for applications where low voltage and good load transient response are important. Device protection includes a current limit, short circuit protection, and thermal shutdown. The NCP565 is packaged in D2PAK, DFN6 or SOT-223.
